SP114 Fittings

Guardian MSS SP-114 Class 150 stainless steel threaded fittings. Browse every product and size, filter 304 or 316 stainless steel, jump directly to any SKU, and add multiple items to a request for quote.

SP114 threaded fitting

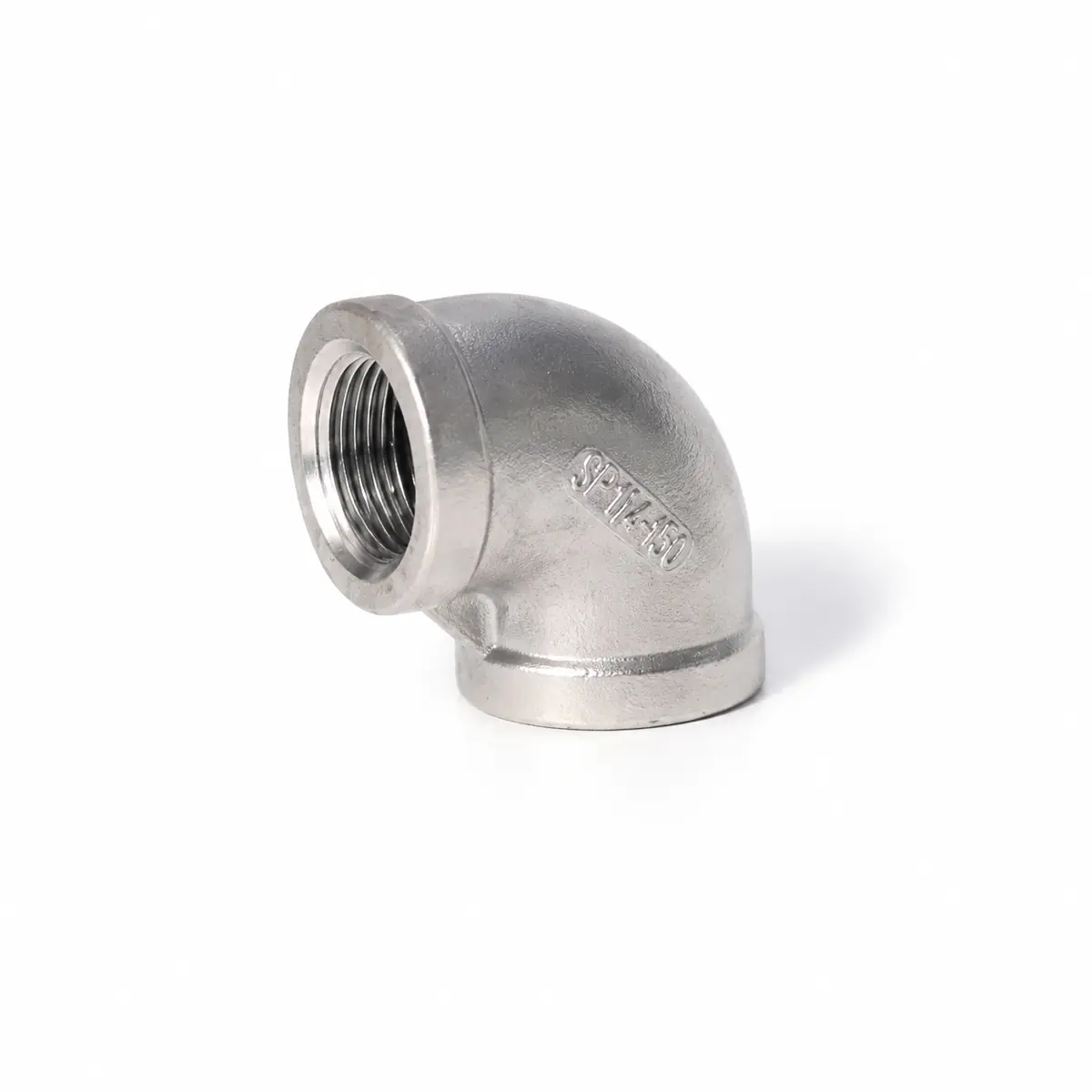

90° Threaded Elbow

Female NPT 90-degree elbow in 304 or 316 stainless steel, available from 1/8 inch through 4 inches.

Back to top
90° Threaded Elbow
Material304 or 316 stainless steel
ConnectionFemale NPT x Female NPT
Material standardsASTM A351/A351M; ASTM A312/A312M
Design standardMSS SP-114-2018
Thread standardASME B1.20.1
Pressure ratingClass 150
SP114 90 Elbow Drawing
Download
Dimensions in inches

Sizes, SKUs and dimensions

Scroll table horizontally on smaller screens
Size 304 SKU 316 SKU Ø H A Weight (lb) Add to quote
1/8" 409ESP114018 609ESP114018 0.768 0.811 0.09
1/4" 409ESP114014 609ESP114014 0.850 0.811 0.11
3/8" 409ESP114038 609ESP114038 1.024 0.929 0.16
1/2" 409ESP114012 609ESP114012 1.213 1.122 0.25
3/4" 409ESP114034 609ESP114034 1.476 1.311 0.40
1" 409ESP114100 609ESP114100 1.791 1.500 0.67
1-1/4" 409ESP114114 609ESP114114 2.165 1.752 0.99
1-1/2" 409ESP114112 609ESP114112 2.441 1.929 1.30
2" 409ESP114200 609ESP114200 2.972 2.252 2.09
2-1/2" 409ESP114212 609ESP114212 3.346 2.681 3.18
3" 409ESP114300 609ESP114300 4.016 3.059 4.70
4" 409ESP114400 609ESP114400 5.098 3.811 8.02
SP114 threaded fitting

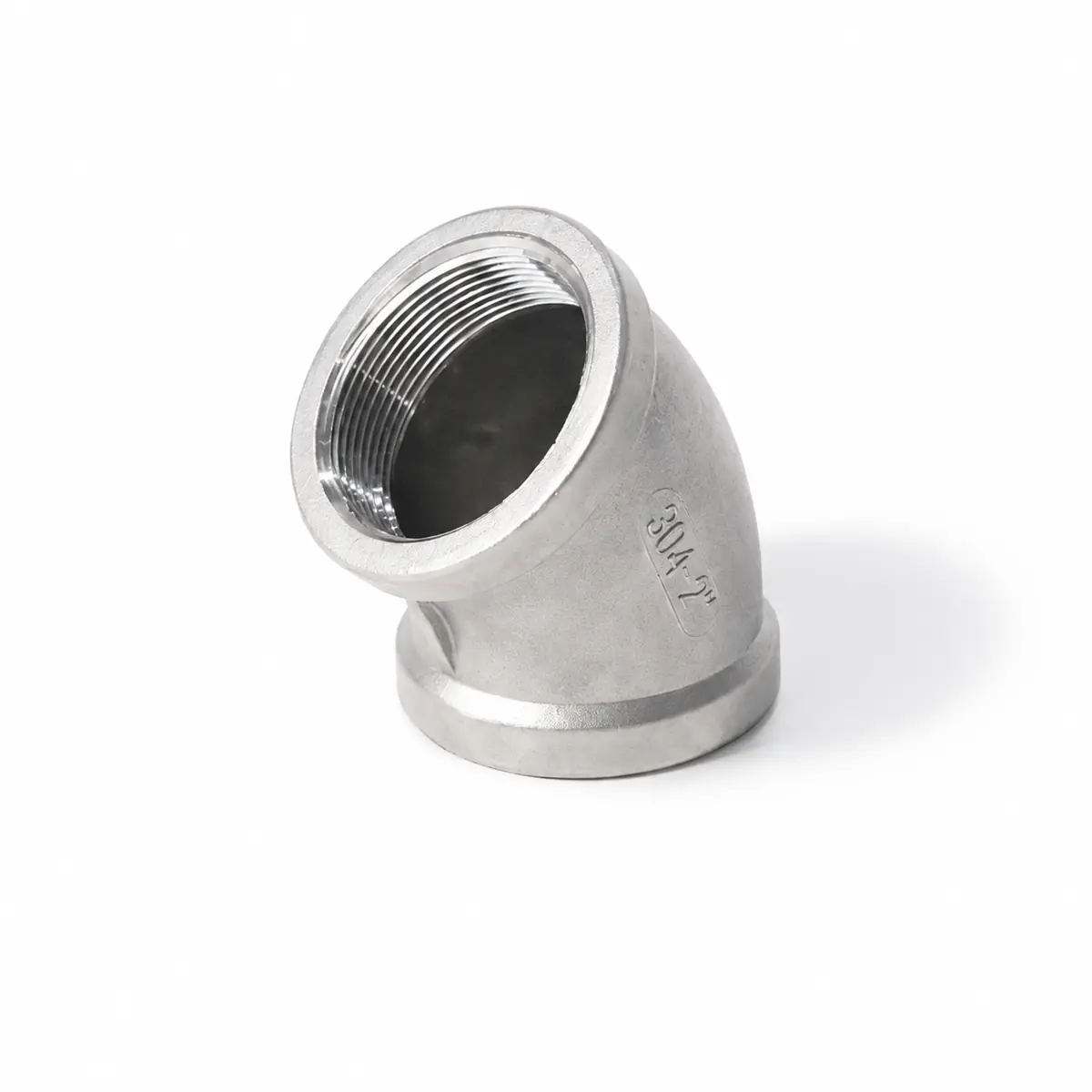

45° Threaded Elbow

Female NPT 45-degree elbow in 304 or 316 stainless steel, available from 1/8 inch through 4 inches.

Back to top
45° Threaded Elbow
Material304 or 316 stainless steel
ConnectionFemale NPT x Female NPT
Material standardsASTM A351/A351M; ASTM A312/A312M
Design standardMSS SP-114-2018
Thread standardASME B1.20.1
Pressure ratingClass 150
SP114 45 Elbow Drawing
Download
Dimensions in inches

Sizes, SKUs and dimensions

Scroll table horizontally on smaller screens
Size 304 SKU 316 SKU Ø H C Weight (lb) Add to quote
1/8" 404ESP114018 604ESP114018 0.768 0.689 0.09
1/4" 404ESP114014 604ESP114014 0.850 0.689 0.10
3/8" 404ESP114038 604ESP114038 1.024 0.811 0.16
1/2" 404ESP114012 604ESP114012 1.213 0.870 0.21
3/4" 404ESP114034 604ESP114034 1.476 1.000 0.38
1" 404ESP114100 604ESP114100 1.791 1.122 0.59
1-1/4" 404ESP114114 604ESP114114 2.165 1.311 0.91
1-1/2" 404ESP114112 604ESP114112 2.441 1.429 1.15
2" 404ESP114200 604ESP114200 2.972 1.681 1.70
2-1/2" 404ESP114212 604ESP114212 3.346 1.929 2.59
3" 404ESP114300 604ESP114300 4.016 2.181 3.88
4" 404ESP114400 604ESP114400 5.098 2.618 6.67
SP114 threaded fitting

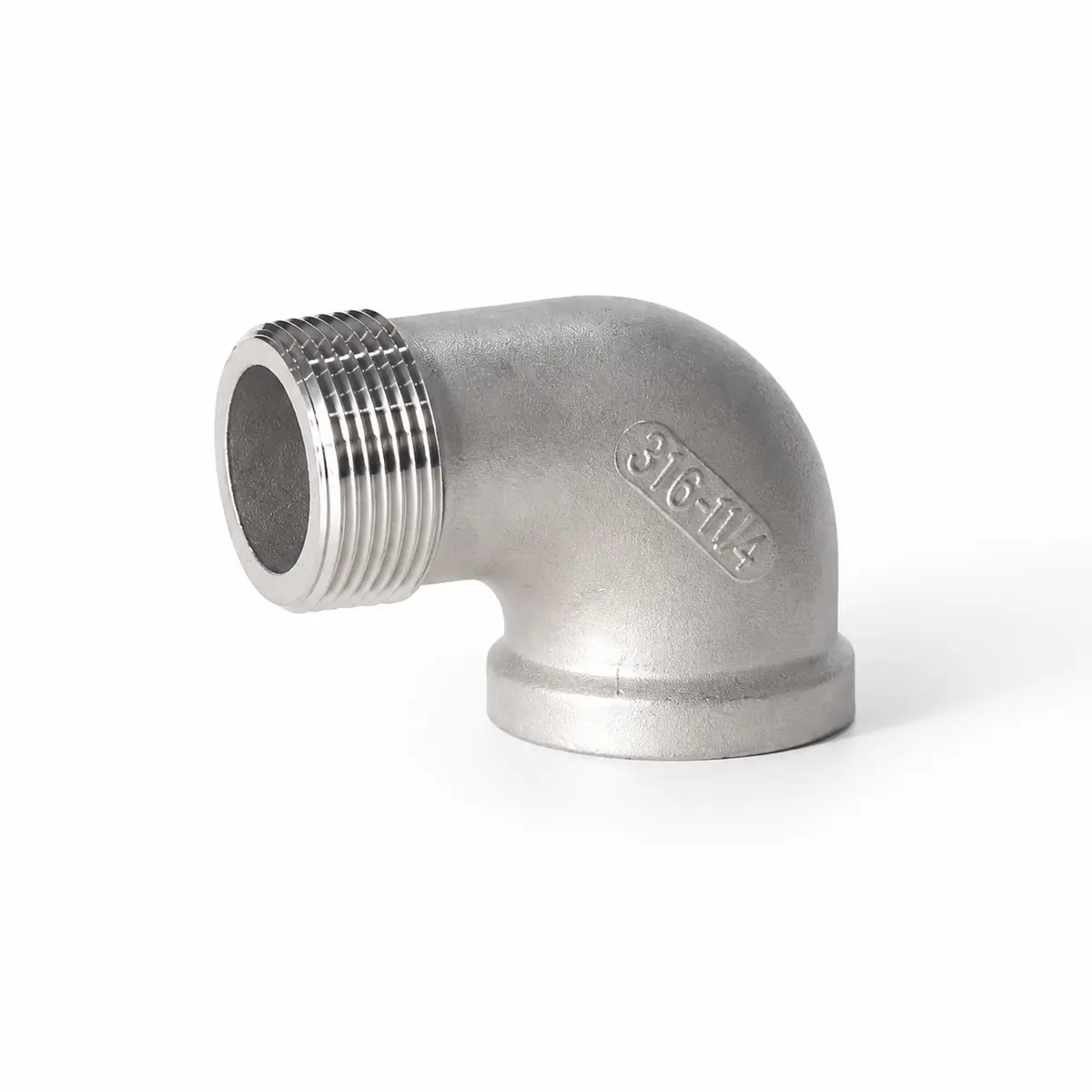

90° Threaded Street Elbow

Male NPT x female NPT 90-degree street elbow in 304 or 316 stainless steel, available from 1/8 inch through 4 inches.

Back to top
90° Threaded Street Elbow
Material304 or 316 stainless steel
ConnectionMale NPT x Female NPT
Material standardsASTM A351/A351M; ASTM A312/A312M
Design standardMSS SP-114-2018
Thread standardASME B1.20.1
Pressure ratingClass 150
SP114 90 Street Elbow Drawing
Download
Dimensions in inches

Sizes, SKUs and dimensions

Scroll table horizontally on smaller screens
Size 304 SKU 316 SKU Ø H J A Weight (lb) Add to quote
1/8" 405ESP114018 605ESP114018 0.768 1.059 0.811 0.07
1/4" 405ESP114014 605ESP114014 0.850 1.181 0.811 0.10
3/8" 405ESP114038 605ESP114038 1.024 1.429 0.929 0.16
1/2" 405ESP114012 605ESP114012 1.213 1.618 1.122 0.24
3/4" 405ESP114034 605ESP114034 1.476 1.870 1.311 0.39
1" 405ESP114100 605ESP114100 1.791 2.118 1.500 0.57
1-1/4" 405ESP114114 605ESP114114 2.165 2.500 1.752 0.97
1-1/2" 405ESP114112 605ESP114112 2.441 2.756 1.929 1.22
2" 405ESP114200 605ESP114200 2.992 3.252 2.252 2.17
2-1/2" 405ESP114212 605ESP114212 3.346 3.870 2.681 3.20
3" 405ESP114300 605ESP114300 4.016 4.500 3.059 4.97
4" 405ESP114400 605ESP114400 5.098 5.681 3.811 8.94
SP114 threaded fitting

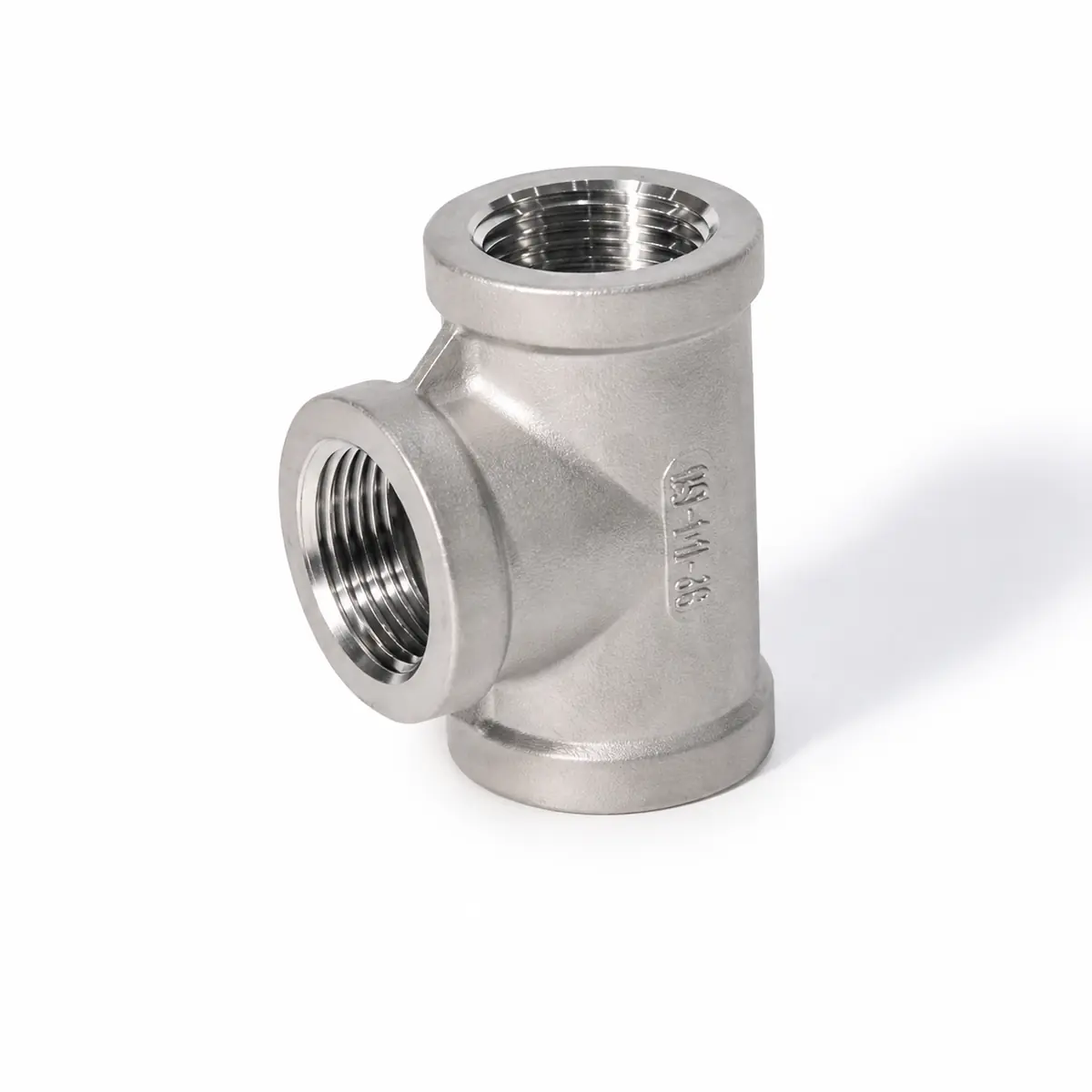

Threaded Tee

Equal female NPT tee in 304 or 316 stainless steel, available from 1/8 inch through 4 inches.

Back to top
Threaded Tee
Material304 or 316 stainless steel
ConnectionFemale NPT
Material standardsASTM A351/A351M; ASTM A312/A312M
Design standardMSS SP-114-2018
Thread standardASME B1.20.1
Pressure ratingClass 150
SP114 Tee Drawing
Download
Dimensions in inches

Sizes, SKUs and dimensions

Scroll table horizontally on smaller screens
Size 304 SKU 316 SKU Ø H A Weight (lb) Add to quote
1/8" 40TESP114018 60TESP114018 0.768 0.811 0.14
1/4" 40TESP114014 60TESP114014 0.850 0.811 0.15
3/8" 40TESP114038 60TESP114038 1.024 0.929 0.23
1/2" 40TESP114012 60TESP114012 1.213 1.118 0.36
3/4" 40TESP114034 60TESP114034 1.476 1.311 0.59
1" 40TESP114100 60TESP114100 1.791 1.500 0.92
1-1/4" 40TESP114114 60TESP114114 2.165 1.752 1.41
1-1/2" 40TESP114112 60TESP114112 2.441 1.929 1.81
2" 40TESP114200 60TESP114200 2.972 2.252 2.80
2-1/2" 40TESP114212 60TESP114212 3.346 2.681 4.15
3" 40TESP114300 60TESP114300 4.016 3.059 6.02
4" 40TESP114400 60TESP114400 5.098 3.811 10.63
SP114 threaded fitting

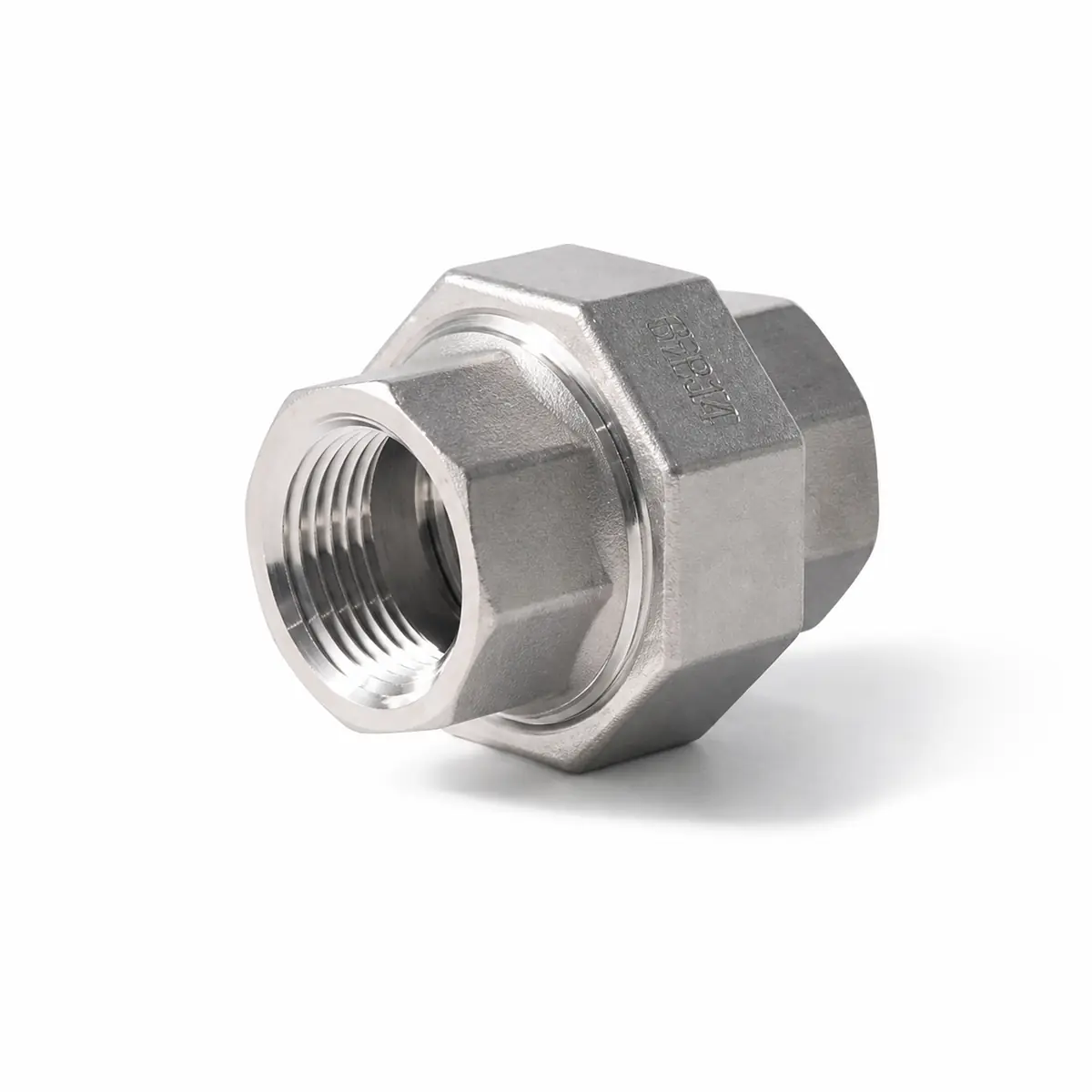

Threaded Union

Three-piece female NPT union in 304 or 316 stainless steel, available from 1/8 inch through 4 inches.

Back to top
Threaded Union
Material304 or 316 stainless steel
ConnectionFemale NPT x Female NPT
ConstructionThree-piece union
Design standardMSS SP-114-2018
Thread standardASME B1.20.1
Pressure ratingClass 150
SP114 Union Drawing
Download
Dimensions in inches

Sizes, SKUs and dimensions

Scroll table horizontally on smaller screens
Size 304 SKU 316 SKU A B C Weight (lb) Add to quote
1/8" 400USP114018 600USP114018 0.406 1.047 1.272 0.16
1/4" 400USP114014 600USP114014 0.535 1.165 1.449 0.20
3/8" 400USP114038 600USP114038 0.689 1.378 1.622 0.31
1/2" 400USP114012 600USP114012 0.835 1.496 1.736 0.38
3/4" 400USP114034 600USP114034 1.047 1.772 1.969 0.54
1" 400USP114100 600USP114100 1.307 2.150 2.091 0.96
1-1/4" 400USP114114 600USP114114 1.654 2.646 2.272 1.47
1-1/2" 400USP114112 600USP114112 1.890 2.976 2.421 1.94
2" 400USP114200 600USP114200 2.362 3.445 2.756 2.38
2-1/2" 400USP114212 600USP114212 2.862 4.157 3.236 4.39
3" 400USP114300 600USP114300 3.488 4.984 3.516 6.40
4" 400USP114400 600USP114400 4.488 6.228 3.878 10.32
SP114 threaded fitting

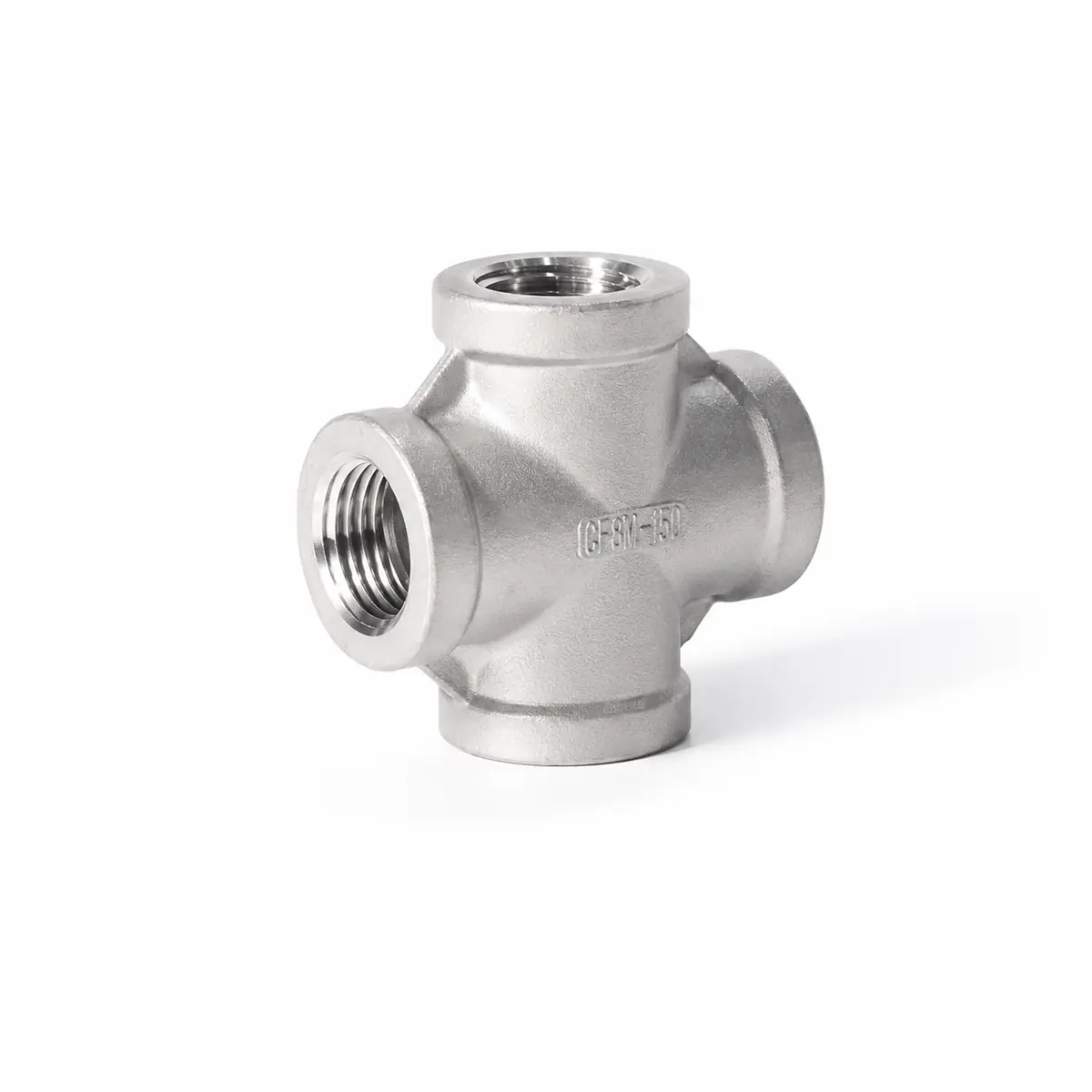

Threaded Cross

Equal female NPT cross in 304 or 316 stainless steel, available from 1/8 inch through 4 inches.

Back to top
Threaded Cross
Material304 or 316 stainless steel
ConnectionFemale NPT
Material standardsASTM A351/A351M; ASTM A312/A312M
Design standardMSS SP-114-2018
Thread standardASME B1.20.1
Pressure ratingClass 150
SP114 Cross Drawing
Download
Dimensions in inches

Sizes, SKUs and dimensions

Scroll table horizontally on smaller screens
Size 304 SKU 316 SKU Ø H A Weight (lb) Add to quote
1/8" 400XSP114018 600XSP114018 0.768 0.811 0.17
1/4" 400XSP114014 600XSP114014 0.850 0.811 0.19
3/8" 400XSP114038 600XSP114038 1.024 0.929 0.29
1/2" 400XSP114012 600XSP114012 1.213 1.118 0.45
3/4" 400XSP114034 600XSP114034 1.476 1.311 0.73
1" 400XSP114100 600XSP114100 1.791 1.500 1.12
1-1/4" 400XSP114114 600XSP114114 2.165 1.752 1.68
1-1/2" 400XSP114112 600XSP114112 2.441 1.929 2.16
2" 400XSP114200 600XSP114200 2.972 2.252 3.31
2-1/2" 400XSP114212 600XSP114212 3.346 2.681 4.83
3" 400XSP114300 600XSP114300 4.016 3.059 6.89
4" 400XSP114400 600XSP114400 5.098 3.811 12.03
SP114 threaded fitting

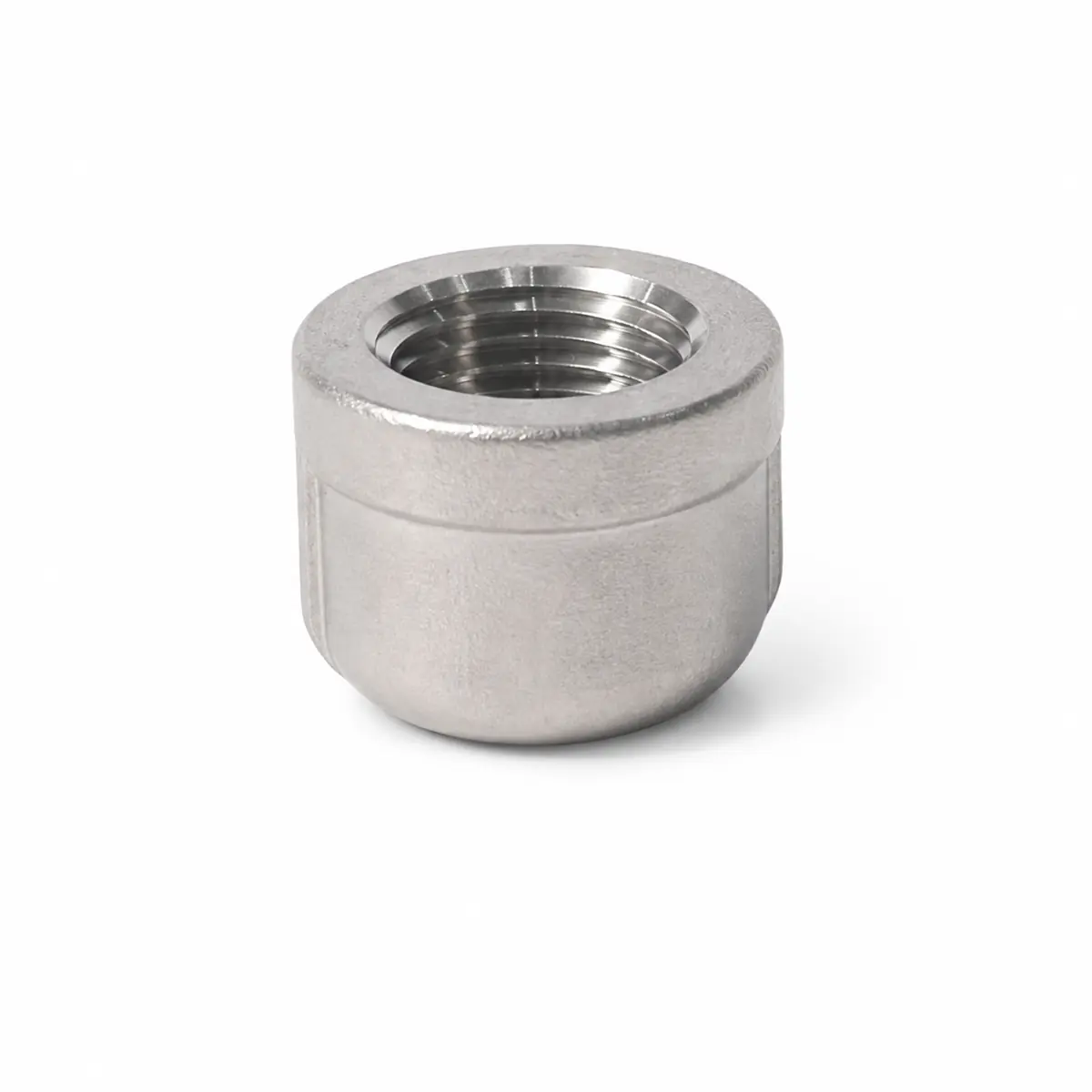

Threaded Round Cap

Female NPT round cap in 304 or 316 stainless steel, available from 1/8 inch through 4 inches.

Back to top
Threaded Round Cap
Material304 or 316 stainless steel
ConnectionFemale NPT
Material standardsASTM A351/A351M; ASTM A312/A312M
Design standardMSS SP-114-2018
Thread standardASME B1.20.1
Pressure ratingClass 150
SP114 Round Cap Drawing
Download
Dimensions in inches

Sizes, SKUs and dimensions

Scroll table horizontally on smaller screens
Size 304 SKU 316 SKU Ø H G1 P Weight (lb) Add to quote
1/8" 40RDCSP114018 60RDCSP114018 0.768 0.098 0.689 0.05
1/4" 40RDCSP114014 60RDCSP114014 0.850 0.098 0.689 0.06
3/8" 40RDCSP114038 60RDCSP114038 1.024 0.110 0.823 0.09
1/2" 40RDCSP114012 60RDCSP114012 1.220 0.130 0.945 0.14
3/4" 40RDCSP114034 60RDCSP114034 1.476 0.138 1.071 0.23
1" 40RDCSP114100 60RDCSP114100 1.783 0.157 1.323 0.39
1-1/4" 40RDCSP114114 60RDCSP114114 2.165 0.177 1.634 0.64
1-1/2" 40RDCSP114112 60RDCSP114112 2.441 0.197 1.634 0.79
2" 40RDCSP114200 60RDCSP114200 2.972 0.220 1.760 1.20
2-1/2" 40RDCSP114212 60RDCSP114212 3.327 0.264 2.012 1.72
3" 40RDCSP114300 60RDCSP114300 4.016 0.303 2.264 2.73
4" 40RDCSP114400 60RDCSP114400 5.098 0.378 2.539 4.76
SP114 threaded fitting

Threaded Lock Nut

Female NPT lock nut in 304 or 316 stainless steel, available from 1/8 inch through 4 inches.

Back to top
Threaded Lock Nut
Material304 or 316 stainless steel
ConnectionFemale NPT
Material standardsASTM A351/A351M; ASTM A312/A312M
Design standardMSS SP-114-2018
Thread standardASME B1.20.1
Pressure ratingClass 150
SP114 Lock Nut Drawing
Download
Dimensions in inches

Sizes, SKUs and dimensions

Scroll table horizontally on smaller screens
Size 304 SKU 316 SKU A C Weight (lb) Add to quote
1/8" 40LNSP114018 60LNSP114018 0.205 0.689 0.02
1/4" 40LNSP114014 60LNSP114014 0.264 0.839 0.03
3/8" 40LNSP114038 60LNSP114038 0.295 1.000 0.04
1/2" 40LNSP114012 60LNSP114012 0.323 1.181 0.06
3/4" 40LNSP114034 60LNSP114034 0.350 1.429 0.09
1" 40LNSP114100 60LNSP114100 0.394 1.752 0.15
1-1/4" 40LNSP114114 60LNSP114114 0.433 2.098 0.21
1-1/2" 40LNSP114112 60LNSP114112 0.480 2.350 0.27
2" 40LNSP114200 60LNSP114200 0.543 2.882 0.38
2-1/2" 40LNSP114212 60LNSP114212 0.602 3.858 1.03
3" 40LNSP114300 60LNSP114300 0.681 4.618 1.58
4" 40LNSP114400 60LNSP114400 0.811 5.787 2.59
SP114 threaded fitting

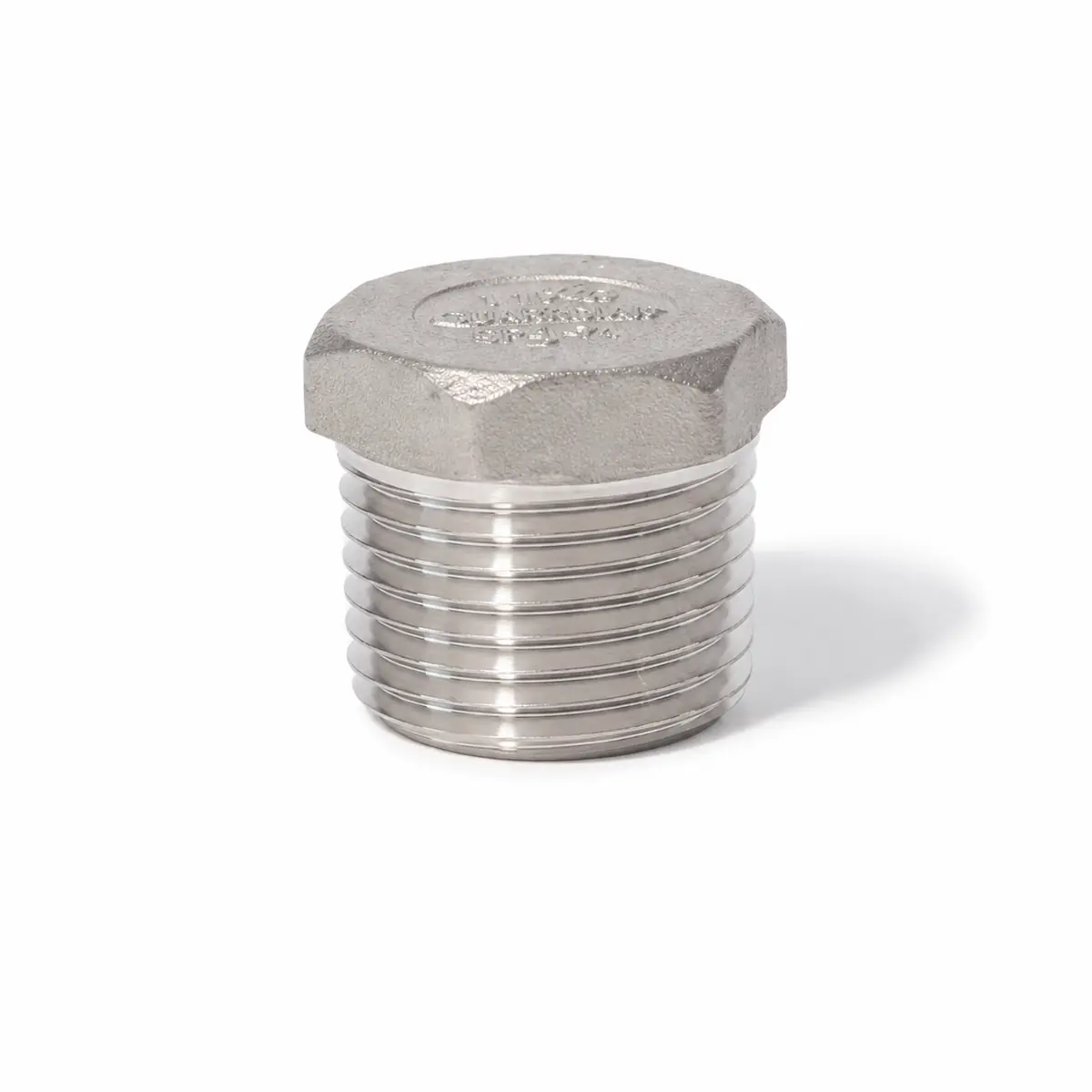

Threaded Hexagon Head Plug

Male NPT hexagon-head plug in 304 or 316 stainless steel, available from 1/8 inch through 4 inches.

Back to top
Threaded Hexagon Head Plug
Material304 or 316 stainless steel
ConnectionMale NPT
Material standardsASTM A351/A351M; ASTM A312/A312M
Design standardMSS SP-114-2018
Thread standardASME B1.20.1
Pressure ratingClass 150
SP114 Hexagon Head Plug Drawing
Download
Dimensions in inches

Sizes, SKUs and dimensions

Scroll table horizontally on smaller screens
Size 304 SKU 316 SKU L B C Weight (lb) Add to quote
1/8" 40HPSP114018 60HPSP114018 0.433 0.154 0.500 0.02
1/4" 40HPSP114014 60HPSP114014 0.512 0.154 0.618 0.04
3/8" 40HPSP114038 60HPSP114038 0.551 0.177 0.681 0.07
1/2" 40HPSP114012 60HPSP114012 0.630 0.209 0.870 0.10
3/4" 40HPSP114034 60HPSP114034 0.701 0.236 1.201 0.18
1" 40HPSP114100 60HPSP114100 0.827 0.268 1.429 0.32
1-1/4" 40HPSP114114 60HPSP114114 0.913 0.295 1.760 0.48
1-1/2" 40HPSP114112 60HPSP114112 0.945 0.323 2.000 0.63
2" 40HPSP114200 60HPSP114200 0.992 0.354 2.480 0.97
2-1/2" 40HPSP114212 60HPSP114212 1.201 0.394 2.933 1.62
3" 40HPSP114300 60HPSP114300 1.260 0.413 3.858 2.52
4" 40HPSP114400 60HPSP114400 1.390 0.500 4.587 4.27
SP114 threaded fitting

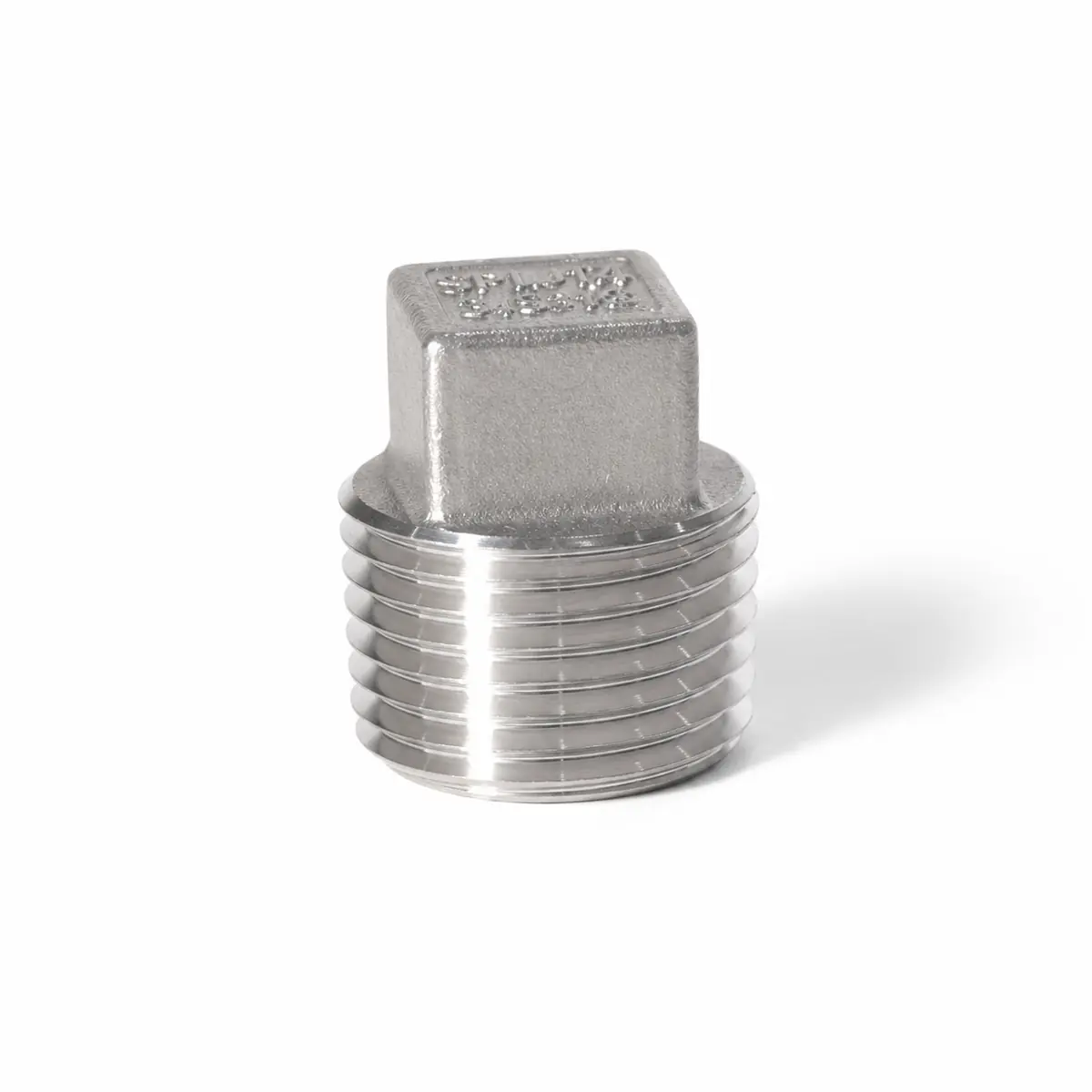

Threaded Square Head Plug

Male NPT square-head plug in 304 or 316 stainless steel, available from 1/8 inch through 4 inches.

Back to top
Threaded Square Head Plug
Material304 or 316 stainless steel
ConnectionMale NPT
Material standardsASTM A351/A351M; ASTM A312/A312M
Design standardMSS SP-114-2018
Thread standardASME B1.20.1
Pressure ratingClass 150
SP114 Square Head Plug Drawing
Download
Dimensions in inches

Sizes, SKUs and dimensions

Scroll table horizontally on smaller screens
Size 304 SKU 316 SKU A B C Weight (lb) Add to quote
1/8" 40SQSP114018 60SQSP114018 0.394 0.256 0.276 0.02
1/4" 40SQSP114014 60SQSP114014 0.453 0.291 0.354 0.04
3/8" 40SQSP114038 60SQSP114038 0.492 0.323 0.421 0.06
1/2" 40SQSP114012 60SQSP114012 0.571 0.394 0.551 0.09
3/4" 40SQSP114034 60SQSP114034 0.642 0.453 0.610 0.14
1" 40SQSP114100 60SQSP114100 0.768 0.520 0.787 0.25
1-1/4" 40SQSP114114 60SQSP114114 0.815 0.571 0.925 0.38
1-1/2" 40SQSP114112 60SQSP114112 0.846 0.634 1.110 0.56
2" 40SQSP114200 60SQSP114200 0.894 0.693 1.299 0.83
2-1/2" 40SQSP114212 60SQSP114212 1.083 0.756 1.488 1.32
3" 40SQSP114300 60SQSP114300 1.142 0.811 1.685 1.87
4" 40SQSP114400 60SQSP114400 1.232 1.012 2.236 3.60
SP114 threaded fitting

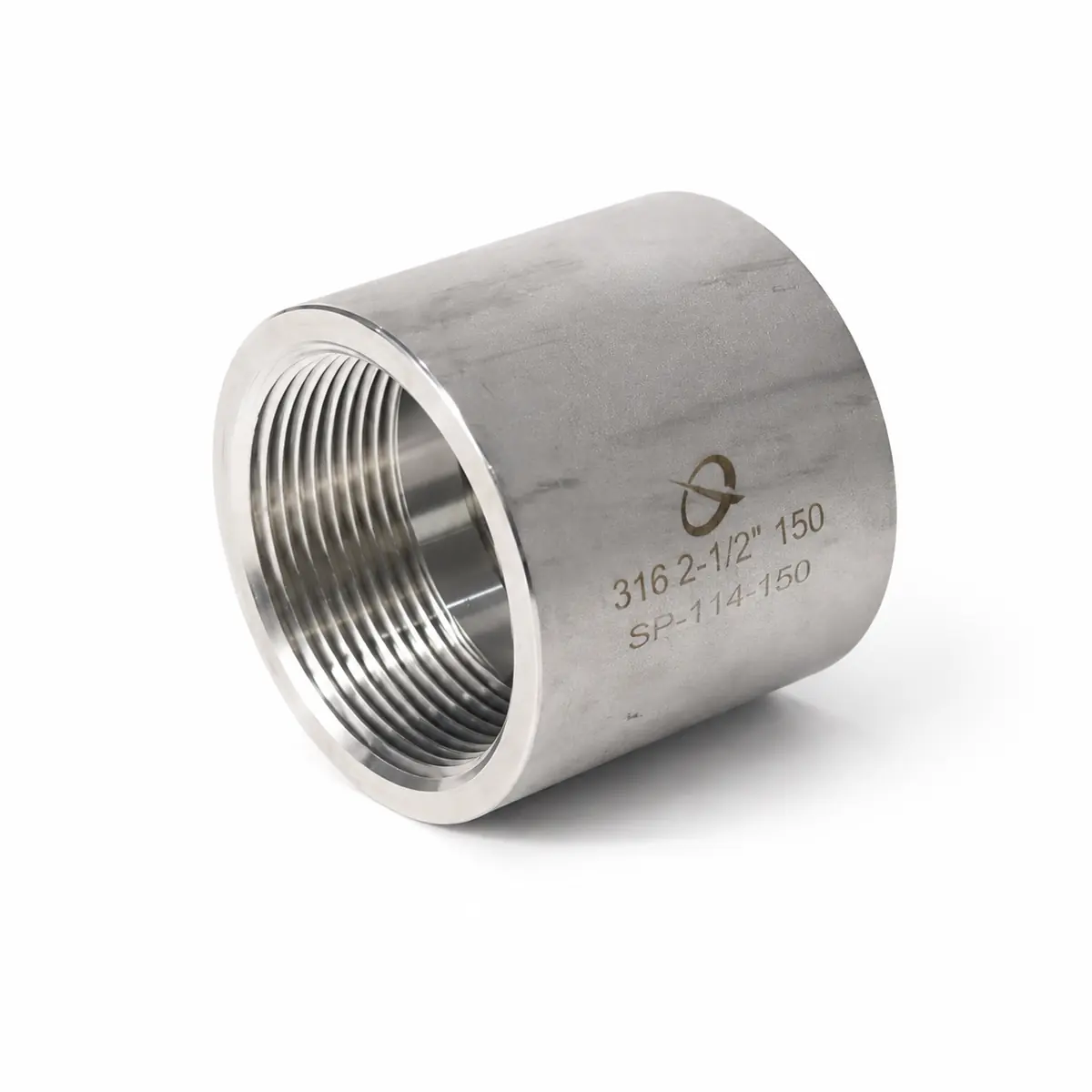

Threaded Full Coupling

Full-length female NPT coupling in 304 or 316 stainless steel, available from 1/8 inch through 4 inches.

Back to top
Threaded Full Coupling
Material304 or 316 stainless steel
ConnectionFemale NPT x Female NPT
Material standardsASTM A351/A351M; ASTM A312/A312M
Design standardMSS SP-114-2018
Thread standardASME B1.20.1
Pressure ratingClass 150
SP114 Full Coupling Drawing
Download
Dimensions in inches

Sizes, SKUs and dimensions

Scroll table horizontally on smaller screens
Size 304 SKU 316 SKU W L Ø H1 Weight (lb) Add to quote
1/8" 40FCSP114018 60FCSP114018 1.012 0.264 0.752 0.10
1/4" 40FCSP114014 60FCSP114014 1.012 0.331 0.850 0.12
3/8" 40FCSP114038 60FCSP114038 1.130 0.370 1.024 0.18
1/2" 40FCSP114012 60FCSP114012 1.398 0.441 1.213 0.30
3/4" 40FCSP114034 60FCSP114034 1.516 0.512 1.476 0.45
1" 40FCSP114100 60FCSP114100 1.634 0.598 1.783 0.67
1-1/4" 40FCSP114114 60FCSP114114 2.012 0.681 2.165 1.08
1-1/2" 40FCSP114112 60FCSP114112 2.134 0.717 2.441 1.39
2" 40FCSP114200 60FCSP114200 2.520 0.768 2.972 2.21
2-1/2" 40FCSP114212 60FCSP114212 2.886 0.945 3.327 2.67
3" 40FCSP114300 60FCSP114300 3.201 0.992 4.016 3.93
4" 40FCSP114400 60FCSP114400 3.701 1.094 5.098 6.53
SP114 threaded fitting

Threaded Half Coupling

Half-length female NPT coupling in 304 or 316 stainless steel, available from 1/8 inch through 4 inches.

Back to top
Threaded Half Coupling
Material304 or 316 stainless steel
ConnectionFemale NPT
Material standardsASTM A351/A351M; ASTM A312/A312M
Design standardMSS SP-114-2018
Thread standardASME B1.20.1
Pressure ratingClass 150
SP114 Half Coupling Drawing
Download
Dimensions in inches

Sizes, SKUs and dimensions

Scroll table horizontally on smaller screens
Size 304 SKU 316 SKU W L Ø H1 Weight (lb) Add to quote
1/8" 40HCSP114018 60HCSP114018 0.512 0.264 0.752 0.05
1/4" 40HCSP114014 60HCSP114014 0.512 0.331 0.850 0.07
3/8" 40HCSP114038 60HCSP114038 0.591 0.370 1.024 0.09
1/2" 40HCSP114012 60HCSP114012 0.709 0.441 1.213 0.14
3/4" 40HCSP114034 60HCSP114034 0.768 0.512 1.476 0.24
1" 40HCSP114100 60HCSP114100 0.827 0.598 1.783 0.34
1-1/4" 40HCSP114114 60HCSP114114 1.024 0.681 2.165 0.55
1-1/2" 40HCSP114112 60HCSP114112 1.083 0.717 2.441 0.68
2" 40HCSP114200 60HCSP114200 1.280 0.768 2.972 1.21
2-1/2" 40HCSP114212 60HCSP114212 1.457 0.945 3.327 1.33
3" 40HCSP114300 60HCSP114300 1.614 0.992 4.016 1.93
4" 40HCSP114400 60HCSP114400 1.850 1.094 5.098 3.38
SP114 threaded fitting

Threaded Reducing Coupling

Female NPT reducing coupling in 304 or 316 stainless steel, with sizes through 4 x 3 inches.

Back to top
Threaded Reducing Coupling
Material304 or 316 stainless steel
ConnectionFemale NPT x Female NPT
TypeReducing coupling
Design standardMSS SP-114-2018
Thread standardASME B1.20.1
Pressure ratingClass 150
SP114 Reducing Coupling Bell Drawing
Download
Dimensions in inches

Sizes, SKUs and dimensions

Scroll table horizontally on smaller screens
Size 304 SKU 316 SKU M Ø H Ø H1 Weight (lb) Add to quote
1/4" × 1/8" 40RCSP114014018 60RCSP114014018 1.012 0.850 0.768 0.06
3/8" × 1/8" 40RCSP114038018 60RCSP114038018 1.130 1.024 0.768 0.13
3/8" × 1/4" 40RCSP114038014 60RCSP114038014 1.130 1.024 0.850 0.15
1/2" × 1/8" 40RCSP114012018 60RCSP114012018 1.394 1.213 0.768 0.16
1/2" × 1/4" 40RCSP114012014 60RCSP114012014 1.394 1.213 0.850 0.18
1/2" × 3/8" 40RCSP114012038 60RCSP114012038 1.394 1.213 1.024 0.20
3/4" × 1/8" 40RCSP114034018 60RCSP114034018 1.512 1.476 0.768 0.16
3/4" × 1/4" 40RCSP114034014 60RCSP114034014 1.512 1.476 0.850 0.21
3/4" × 3/8" 40RCSP114034038 60RCSP114034038 1.512 1.476 1.024 0.23
3/4" × 1/2" 40RCSP114034012 60RCSP114034012 1.512 1.476 1.213 0.27
1" × 1/8" 40RCSP114100018 60RCSP114100018 1.634 1.791 0.768 0.35
1" × 1/4" 40RCSP114100014 60RCSP114100014 1.634 1.791 0.850 0.35
1" × 3/8" 40RCSP114100038 60RCSP114100038 1.634 1.791 1.024 0.37
1" × 1/2" 40RCSP114100012 60RCSP114100012 1.634 1.791 1.213 0.41
1" × 3/4" 40RCSP114100034 60RCSP114100034 1.634 1.791 1.476 0.42
1-1/4" × 1/8" 40RCSP114114018 60RCSP114114018 2.016 2.165 0.768 0.45
1-1/4" × 1/4" 40RCSP114114014 60RCSP114114014 2.016 2.165 0.850 0.49
1-1/4" × 3/8" 40RCSP114114038 60RCSP114114038 2.016 2.165 1.024 0.48
1-1/4" × 1/2" 40RCSP114114012 60RCSP114114012 2.016 2.165 1.213 0.52
1-1/4" × 3/4" 40RCSP114114034 60RCSP114114034 2.016 2.165 1.476 0.53
1-1/4" × 1" 40RCSP114114100 60RCSP114114100 2.016 2.165 1.791 0.62
1-1/2" × 1/4" 40RCSP114112014 60RCSP114112014 2.134 2.441 0.850 0.59
1-1/2" × 3/8" 40RCSP114112038 60RCSP114112038 2.134 2.441 1.024 0.61
1-1/2" × 1/2" 40RCSP114112012 60RCSP114112012 2.134 2.441 1.213 0.61
1-1/2" × 3/4" 40RCSP114112034 60RCSP114112034 2.134 2.441 1.476 0.66
1-1/2" × 1" 40RCSP114112100 60RCSP114112100 2.134 2.441 1.791 0.70
1-1/2" × 1-1/4" 40RCSP114112114 60RCSP114112114 2.134 2.441 2.165 0.75
2" × 1/4" 40RCSP114200014 60RCSP114200014 2.516 2.972 0.984 0.93
2" × 3/8" 40RCSP114200038 60RCSP114200038 2.516 2.972 1.102 0.96
2" × 1/2" 40RCSP114200012 60RCSP114200012 2.516 2.972 1.299 1.01
2" × 3/4" 40RCSP114200034 60RCSP114200034 2.516 2.972 1.476 1.03
2" × 1" 40RCSP114200100 60RCSP114200100 2.516 2.972 1.791 1.08
2" × 1-1/4" 40RCSP114200114 60RCSP114200114 2.516 2.972 2.165 1.12
2" × 1-1/2" 40RCSP114200112 60RCSP114200112 2.516 2.972 2.441 1.17
2-1/2" × 1/2" 40RCSP114212012 60RCSP114212012 3.268 3.346 1.378 1.59
2-1/2" × 3/4" 40RCSP114212034 60RCSP114212034 3.268 3.346 1.575 1.61
2-1/2" × 1" 40RCSP114212100 60RCSP114212100 3.268 3.346 1.811 1.65
2-1/2" × 1-1/4" 40RCSP114212114 60RCSP114212114 3.268 3.346 2.165 1.73
2-1/2" × 1-1/2" 40RCSP114212112 60RCSP114212112 3.268 3.346 2.441 1.78
2-1/2" × 2" 40RCSP114212200 60RCSP114212200 3.268 3.346 2.972 1.92
3" × 1/2" 40RCSP114300012 60RCSP114300012 3.697 4.106 1.575
3" × 3/4" 40RCSP114300034 60RCSP114300034 3.697 4.106 1.575 2.67
3" × 1" 40RCSP114300100 60RCSP114300100 3.697 4.106 1.870 2.69
3" × 1-1/4" 40RCSP114300114 60RCSP114300114 3.697 4.106 2.244 2.22
3" × 1-1/2" 40RCSP114300112 60RCSP114300112 3.697 4.106 2.480 2.83
3" × 2" 40RCSP114300200 60RCSP114300200 3.697 4.106 2.972 2.84
3" × 2-1/2" 40RCSP114300212 60RCSP114300212 3.697 4.106 3.425 3.10
4" × 1" 40RCSP114400100 60RCSP114400100 4.398 5.098 1.929 4.83
4" × 1-1/4" 40RCSP114400114 60RCSP114400114 4.398 5.098 2.283 5.05
4" × 1-1/2" 40RCSP114400112 60RCSP114400112 4.398 5.098 2.520 4.86
4" × 2" 40RCSP114400200 60RCSP114400200 4.398 5.098 3.012 5.03
4" × 2-1/2" 40RCSP114400212 60RCSP114400212 4.398 5.098 3.504 5.13
4" × 3" 40RCSP114400300 60RCSP114400300 4.398 5.098 4.134 5.62
SP114 threaded fitting

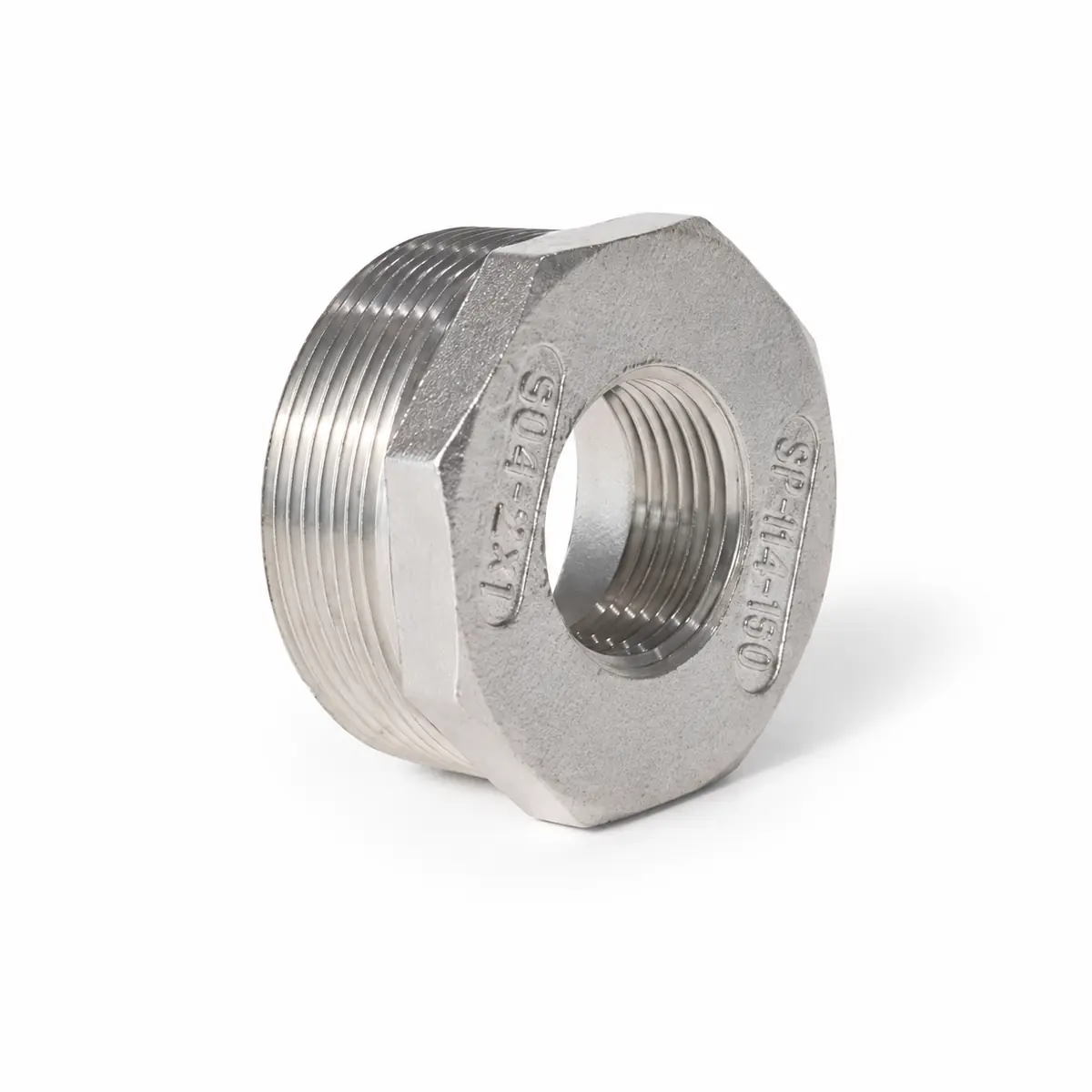

Threaded Hexagon Bushing

Male NPT x female NPT hexagon reducing bushing in 304 or 316 stainless steel, with sizes through 4 x 3 inches.

Back to top
Threaded Hexagon Bushing
Material304 or 316 stainless steel
ConnectionMale NPT x Female NPT
TypeReducing bushing
Design standardMSS SP-114-2018
Thread standardASME B1.20.1
Pressure ratingClass 150
SP114 Hexagon Bushing Drawing
Download
Dimensions in inches

Sizes, SKUs and dimensions

Scroll table horizontally on smaller screens
Size 304 SKU 316 SKU A C T Weight (lb) Add to quote
1/4" × 1/8" 400BSP114014018 600BSP114014018 0.461 0.591 0.276 0.03
3/8" × 1/8" 400BSP114038018 600BSP114038018 0.512 0.681 0.276 0.06
3/8" × 1/4" 400BSP114038014 600BSP114038014 0.512 0.681 0.413 0.06
1/2" × 1/8" 400BSP114012018 600BSP114012018 0.571 0.870 0.276 0.09
1/2" × 1/4" 400BSP114012014 600BSP114012014 0.571 0.870 0.413 0.09
1/2" × 3/8" 400BSP114012038 600BSP114012038 0.571 0.870 0.421 0.08
3/4" × 1/8" 400BSP114034018 600BSP114034018 0.630 1.201 0.276 0.16
3/4" × 1/4" 400BSP114034014 600BSP114034014 0.630 1.201 0.413 0.15
3/4" × 3/8" 400BSP114034038 600BSP114034038 0.630 1.201 0.421 0.15
3/4" × 1/2" 400BSP114034012 600BSP114034012 0.630 1.201 0.543 0.13
1" × 1/8" 400BSP114100018 600BSP114100018 0.768 1.362 0.276 0.25
1" × 1/4" 400BSP114100014 600BSP114100014 0.768 1.362 0.413 0.25
1" × 3/8" 400BSP114100038 600BSP114100038 0.768 1.362 0.421 0.24
1" × 1/2" 400BSP114100012 600BSP114100012 0.768 1.362 0.543 0.22
1" × 3/4" 400BSP114100034 600BSP114100034 0.768 1.362 0.563 0.20
1-1/4" × 1/8" 400BSP114114018 600BSP114114018 0.823 1.740 0.276 0.34
1-1/4" × 1/4" 400BSP114114014 600BSP114114014 0.823 1.740 0.413 0.36
1-1/4" × 3/8" 400BSP114114038 600BSP114114038 0.823 1.740 0.421 0.35
1-1/4" × 1/2" 400BSP114114012 600BSP114114012 0.823 1.740 0.543 0.34
1-1/4" × 3/4" 400BSP114114034 600BSP114114034 0.823 1.740 0.563 0.31
1-1/4" × 1" 400BSP114114100 600BSP114114100 0.823 1.740 0.693 0.28
1-1/2" × 1/8" 400BSP114112018 600BSP114112018 0.823 1.988 0.276
1-1/2" × 1/4" 400BSP114112014 600BSP114112014 0.823 1.988 0.413 0.52
1-1/2" × 3/8" 400BSP114112038 600BSP114112038 0.823 1.988 0.421 0.51
1-1/2" × 1/2" 400BSP114112012 600BSP114112012 0.823 1.988 0.543 0.51
1-1/2" × 3/4" 400BSP114112034 600BSP114112034 0.823 1.988 0.563 0.49
1-1/2" × 1" 400BSP114112100 600BSP114112100 0.823 1.988 0.693 0.45
1-1/2" × 1-1/4" 400BSP114112114 600BSP114112114 0.823 1.988 0.720 0.34
2" × 1/8" 400BSP114200018 600BSP114200018 0.894 2.480 0.276
2" × 1/4" 400BSP114200014 600BSP114200014 0.894 2.480 0.413 0.77
2" × 3/8" 400BSP114200038 600BSP114200038 0.894 2.480 0.421 0.78
2" × 1/2" 400BSP114200012 600BSP114200012 0.894 2.480 0.543 0.77
2" × 3/4" 400BSP114200034 600BSP114200034 0.894 2.480 0.563 0.75
2" × 1" 400BSP114200100 600BSP114200100 0.894 2.480 0.693 0.77
2" × 1-1/4" 400BSP114200114 600BSP114200114 0.894 2.480 0.720 0.72
2" × 1-1/2" 400BSP114200112 600BSP114200112 0.894 2.480 0.732 1.27
2-1/2" × 1/2" 400BSP114212012 600BSP114212012 1.071 2.992 0.543 1.26
2-1/2" × 3/4" 400BSP114212034 600BSP114212034 1.071 2.992 0.563 1.32
2-1/2" × 1" 400BSP114212100 600BSP114212100 1.071 2.992 0.693 1.33
2-1/2" × 1-1/4" 400BSP114212114 600BSP114212114 1.071 2.992 0.720 1.41
2-1/2" × 1-1/2" 400BSP114212112 600BSP114212112 1.071 2.992 0.732 1.19
2-1/2" × 2" 400BSP114212200 600BSP114212200 1.071 2.992 0.772 0.99
3" × 1/2" 400BSP114300012 600BSP114300012 1.130 3.488 0.543
3" × 3/4" 400BSP114300034 600BSP114300034 1.130 3.488 0.563 2.08
3" × 1" 400BSP114300100 600BSP114300100 1.130 3.488 0.693 2.17
3" × 1-1/4" 400BSP114300114 600BSP114300114 1.130 3.488 0.720 2.20
3" × 1-1/2" 400BSP114300112 600BSP114300112 1.130 3.488 0.732 2.10
3" × 2" 400BSP114300200 600BSP114300200 1.130 3.488 0.772 1.90
3" × 2-1/2" 400BSP114300212 600BSP114300212 1.130 3.488 1.154 1.60
4" × 1" 400BSP114400100 600BSP114400100 1.264 4.614 0.693 3.64
4" × 1-1/4" 400BSP114400114 600BSP114400114 1.264 4.614 0.720 3.51
4" × 1-1/2" 400BSP114400112 600BSP114400112 1.264 4.614 0.732 3.67
4" × 2" 400BSP114400200 600BSP114400200 1.264 4.614 0.772 3.52
4" × 2-1/2" 400BSP114400212 600BSP114400212 1.264 4.614 1.154 3.43
4" × 3" 400BSP114400300 600BSP114400300 1.264 4.614 1.213 2.83
