Guardian 316 Stainless Camlocks

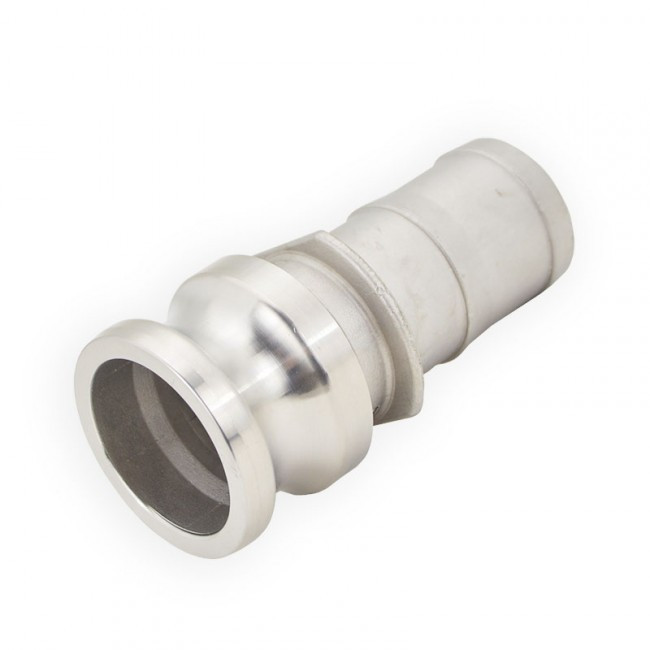

Compare Types A, B, C, D, DC, DP, E, and F by connection, size, SKU, weight, and supplied drawing dimensions. Open the original engineering catalog and add multiple camlock selections to one request for quote.
Male camlock adapter x female threaded end

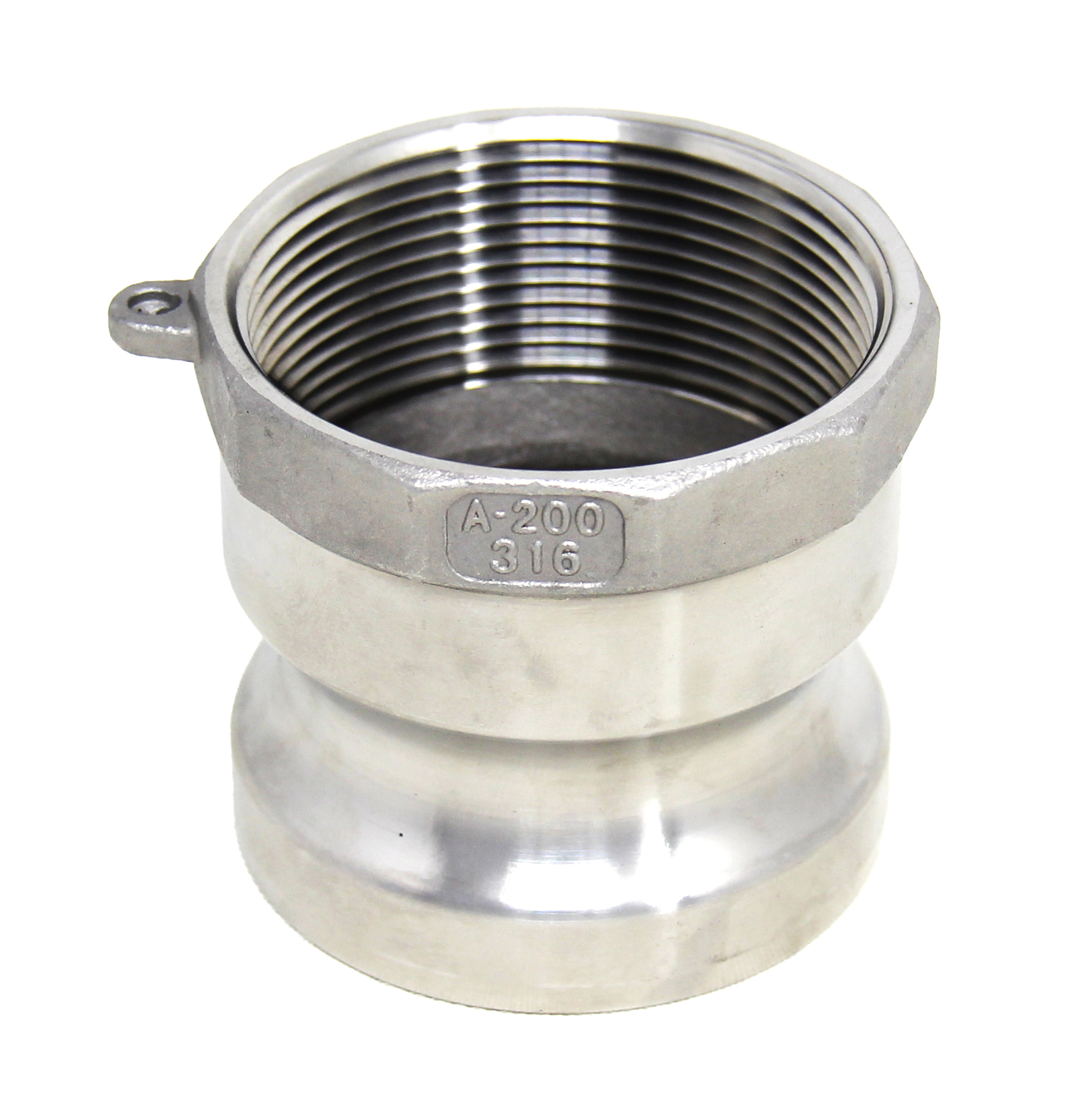

Type A Camlock Adapter
Type A 316 stainless cam-and-groove adapter with a male adapter end and female threaded process connection.
Back to top
Camlock typeType A
ConnectionMale camlock adapter x female threaded end
Material shown316 stainless steel
Size range1/2 inch through 6 inches
Source dataGuardian dimensional catalog; dimensions in inches and weights in pounds
Ordering noteConfirm thread standard where applicable, gasket compound, pressure, temperature, hose OD, medium, and required certification
Guardian 316 Stainless Camlock Drawing and Dimensions
Dimensions in inches; source tolerances retained
316 stainless sizes, SKUs and dimensions
Scroll table horizontally on smaller screens
Size
316 Stainless SKU
Outside dia. D
Inside dia. d
Body length L
Machine length L4
Wrench flats S
Weight (lb) Add to quote
1/2"
KLS61A012
0.94 +/- 0.005
0.57 +/- 0.008
1.38 -0.03
0.98 +/- 0.005
1.00 +/- 0.015
0.11
3/4"
KLS61A034
1.26 +/- 0.005
0.88 +/- 0.008
1.38 -0.03
0.98 +/- 0.005
1.26 +/- 0.015
0.17
1"
KLS61A010
1.44 +/- 0.005
0.98 +/- 0.008
1.71 -0.04
1.25 +/- 0.005
1.48 +/- 0.015
0.25
1-1/4"
KLS61A114
1.79 +/- 0.006
1.20 +/- 0.010
1.99 -0.04
1.51 +/- 0.006
1.81 +/- 0.015
0.38
1-1/2"
KLS61A112
2.10 +/- 0.006
1.45 +/- 0.010
2.03 -0.04
1.52 +/- 0.006
2.09 +/- 0.015
0.51
2"
KLS61A200
2.48 +/- 0.006
1.89 +/- 0.012
2.42 -0.04
1.87 +/- 0.006
2.56 +/- 0.020
0.70
2-1/2"
KLS61A212
2.98 +/- 0.006
2.28 +/- 0.012
2.94 -0.04
1.94 +/- 0.006
3.07 +/- 0.020
1.14
3"
KLS61A300
3.60 +/- 0.008
2.95 +/- 0.012
2.66 -0.05
2.01 +/- 0.008
3.70 +/- 0.020
1.25
4"
KLS61A400
4.71 +/- 0.010
4.01 +/- 0.016
2.70 -0.05
1.94 +/- 0.008
4.73 +/- 0.030
2.04
5"
KLS61A500
5.73 +/- 0.015
4.96 +/- 0.020
3.19 -0.06
2.19 +/- 0.011
5.91 +/- 0.030
4.07
6"
KLS61A600
6.93 +/- 0.015
5.90 +/- 0.020
3.35 -0.06
2.32 +/- 0.011
7.09 +/- 0.035
5.83
Female camlock coupler x male threaded end

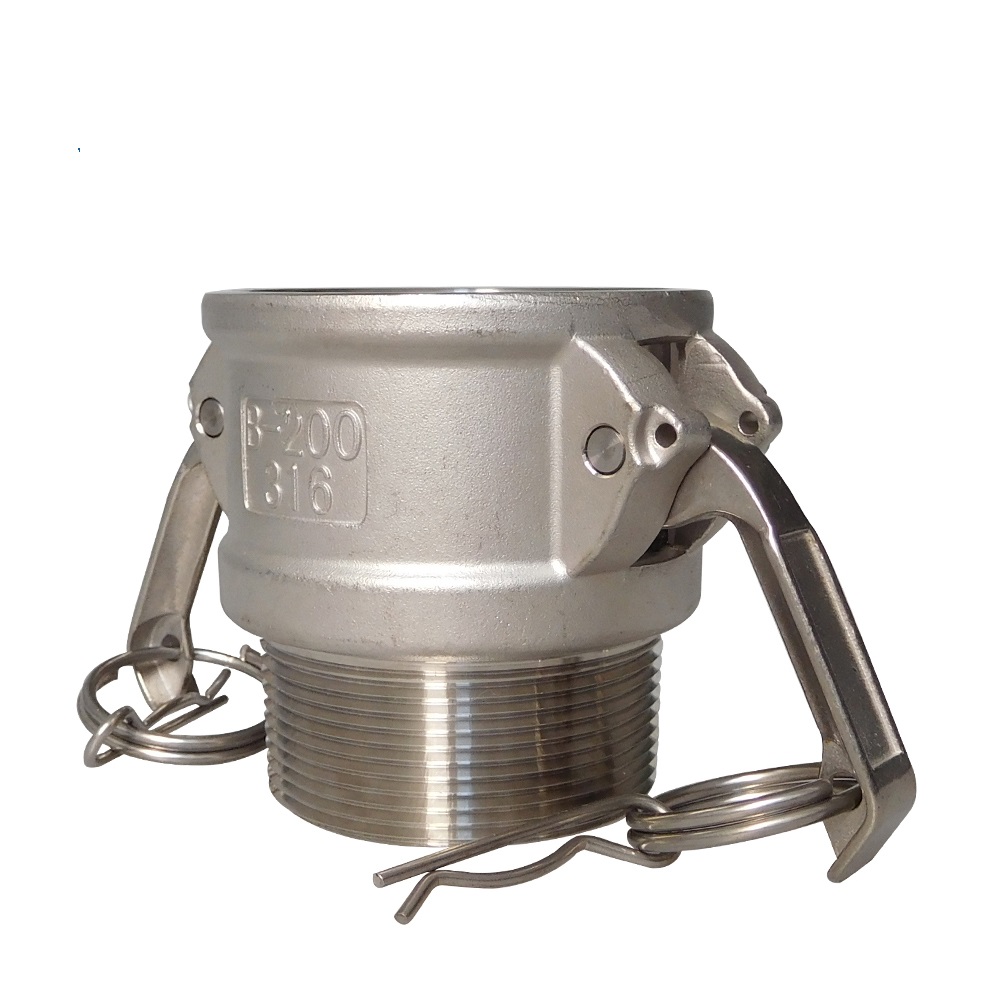

Type B Camlock Coupler
Type B 316 stainless cam-and-groove coupler with locking handles and a male threaded process connection.
Back to top
Camlock typeType B
ConnectionFemale camlock coupler x male threaded end
Material shown316 stainless steel
Size range1/2 inch through 6 inches
Source dataGuardian dimensional catalog; dimensions in inches and weights in pounds
Ordering noteConfirm thread standard where applicable, gasket compound, pressure, temperature, hose OD, medium, and required certification
Guardian 316 Stainless Camlock Drawing and Dimensions
Dimensions in inches; source tolerances retained
316 stainless sizes, SKUs and dimensions
Scroll table horizontally on smaller screens
Size
316 Stainless SKU
Outside dia. D
Inside dia. d
Body length L
Handle length L1
Body edge L2
Weight (lb) Add to quote
1/2"
KLS61B012
1.30 +/- 0.015
1.00 +/- 0.010
1.73 -0.03
4.33 +/- 0.040
2.15 -0.03
0.33
3/4"
KLS61B034
1.60 +/- 0.015
1.28 +/- 0.010
1.77 -0.03
4.73 +/- 0.040
2.50 -0.03
0.36
1"
KLS61B010
1.81 +/- 0.015
1.48 +/- 0.010
2.13 -0.04
5.24 +/- 0.040
2.68 -0.04
0.48
1-1/4"
KLS61B114
2.23 +/- 0.020
1.82 +/- 0.015
2.50 -0.04
7.13 +/- 0.060
3.11 -0.04
0.82
1-1/2"
KLS61B112
2.52 +/- 0.020
2.13 +/- 0.015
2.56 -0.04
7.42 +/- 0.060
3.46 -0.04
0.92
2"
KLS61B200
2.92 +/- 0.025
2.51 +/- 0.015
2.81 -0.04
7.80 +/- 0.060
3.82 -0.04
1.14
2-1/2"
KLS61B212
3.43 +/- 0.025
3.02 +/- 0.020
3.23 -0.04
8.29 +/- 0.060
4.29 -0.04
1.45
3"
KLS61B300
4.15 +/- 0.030
3.64 +/- 0.030
3.32 -0.05
9.76 +/- 0.080
5.10 -0.05
2.11
4"
KLS61B400
5.28 +/- 0.030
4.74 +/- 0.030
3.47 -0.05
10.87 +/- 0.100
6.38 -0.05
2.77
5"
KLS61B500
6.42 +/- 0.040
5.76 +/- 0.040
3.98 -0.06
11.89 +/- 0.100
7.28 -0.06
5.83
6"
KLS61B600
7.78 +/- 0.060
6.96 +/- 0.060
4.33 -0.06
14.88 +/- 0.100
8.82 -0.06
7.37
Female camlock coupler x hose shank

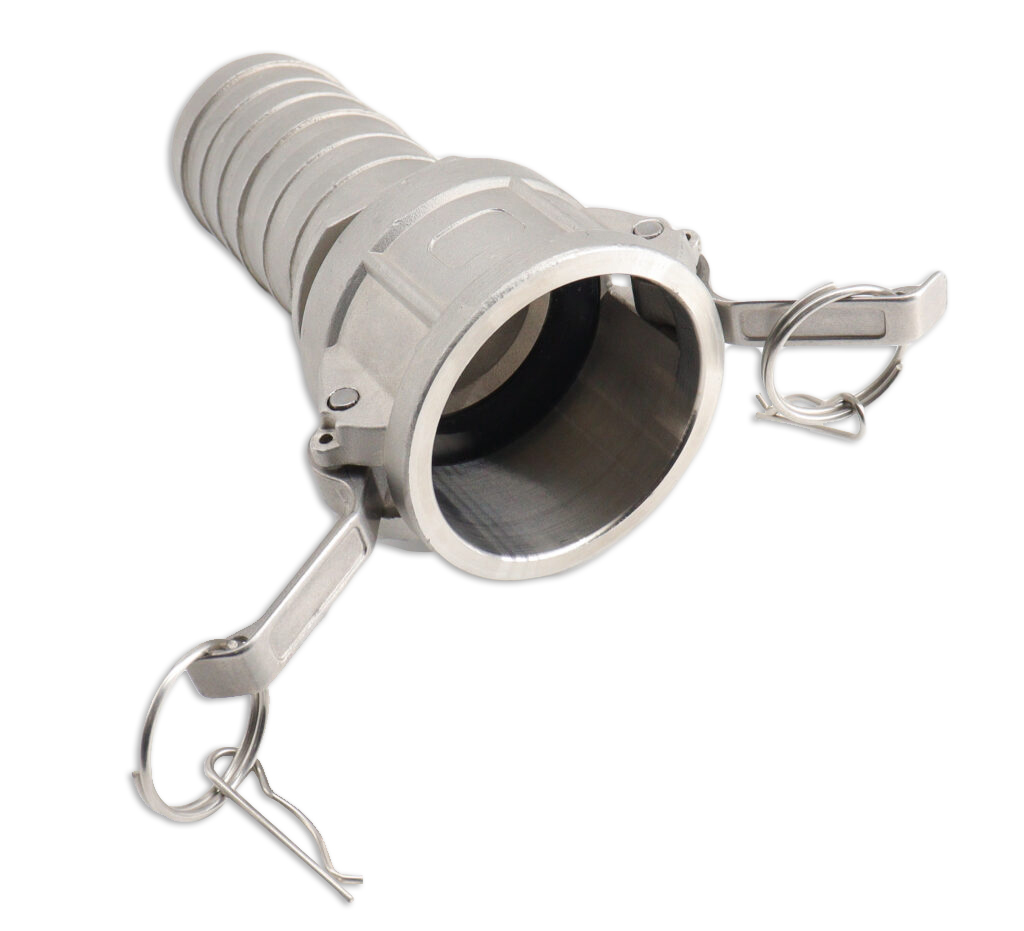

Type C Camlock Hose Coupler
Type C 316 stainless cam-and-groove coupler with locking handles and a stepped hose-shank connection.
Back to top
Camlock typeType C
ConnectionFemale camlock coupler x hose shank
Material shown316 stainless steel
Size range1/2 inch through 6 inches
Source dataGuardian dimensional catalog; dimensions in inches and weights in pounds
Ordering noteConfirm thread standard where applicable, gasket compound, pressure, temperature, hose OD, medium, and required certification
Guardian 316 Stainless Camlock Drawing and Dimensions
Dimensions in inches; source tolerances retained
316 stainless sizes, SKUs and dimensions
Scroll table horizontally on smaller screens
Size
316 Stainless SKU
Outside dia. D
Inside dia. d
Hose dia. D1
Body length L
Handle length L1
Body edge L2
Hose length L3
Weight (lb) Add to quote
1/2"
KLS61C012
1.30 +/- 0.015
0.33 +/- 0.010
0.55 +/- 0.010
2.76 -0.03
4.33 +/- 0.04
2.15 -0.03
1.61 +/- 0.010
0.33
3/4"
KLS61C034
1.60 +/- 0.015
0.57 +/- 0.010
0.81 +/- 0.010
3.19 -0.03
4.72 +/- 0.04
2.50 -0.03
2.01 +/- 0.010
0.36
1"
KLS61C010
1.81 +/- 0.015
0.83 +/- 0.010
1.06 +/- 0.010
3.62 -0.04
5.24 +/- 0.04
2.68 -0.04
2.20 +/- 0.010
0.48
1-1/4"
KLS61C114
2.23 +/- 0.020
1.04 +/- 0.015
1.30 +/- 0.010
4.09 -0.04
7.13 +/- 0.06
3.11 -0.04
2.38 +/- 0.015
0.82
1-1/2"
KLS61C112
2.52 +/- 0.020
1.32 +/- 0.015
1.57 +/- 0.010
4.33 -0.04
7.42 +/- 0.06
3.46 -0.04
2.60 +/- 0.015
0.92
2"
KLS61C200
2.92 +/- 0.025
1.77 +/- 0.015
2.07 +/- 0.012
5.00 -0.04
7.80 +/- 0.06
3.82 -0.04
3.10 +/- 0.015
1.14
2-1/2"
KLS61C212
3.43 +/- 0.025
2.26 +/- 0.020
2.60 +/- 0.012
5.35 -0.04
8.29 +/- 0.06
4.29 -0.04
3.28 +/- 0.020
1.45
3"
KLS61C300
4.15 +/- 0.030
2.76 +/- 0.030
3.11 +/- 0.015
5.91 -0.05
9.76 +/- 0.08
5.10 -0.05
3.81 +/- 0.030
2.11
4"
KLS61C400
5.28 +/- 0.030
3.62 +/- 0.030
4.06 +/- 0.016
6.57 -0.05
10.87 +/- 0.10
6.38 -0.05
4.48 +/- 0.030
2.77
5"
KLS61C500
6.42 +/- 0.040
4.72 +/- 0.040
5.14 +/- 0.020
7.48 -0.06
11.89 +/- 0.10
7.28 -0.06
5.16 +/- 0.040
5.83
6"
KLS61C600
7.78 +/- 0.060
5.59 +/- 0.060
6.14 +/- 0.025
7.87 -0.06
14.88 +/- 0.10
8.82 -0.06
5.41 +/- 0.050
7.37
Female camlock coupler x female threaded end

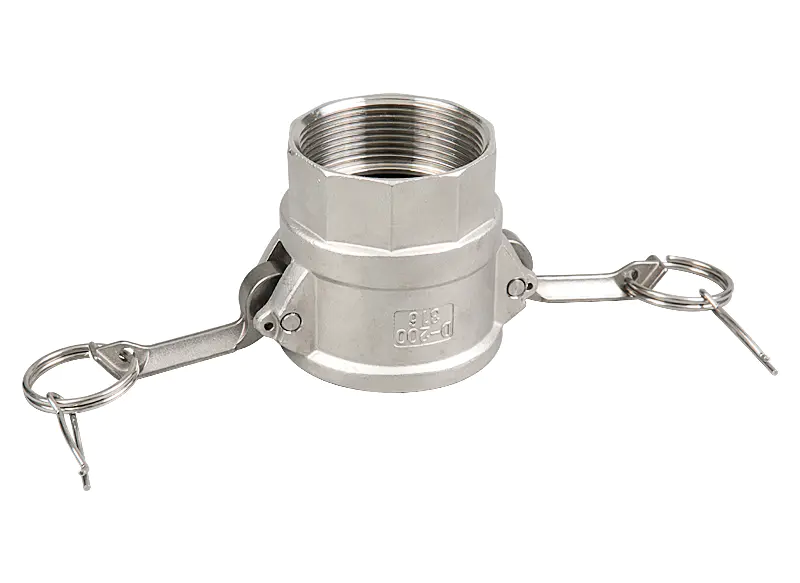

Type D Camlock Coupler
Type D 316 stainless cam-and-groove coupler with locking handles and a female threaded process connection.
Back to top
Camlock typeType D
ConnectionFemale camlock coupler x female threaded end
Material shown316 stainless steel
Size range1/2 inch through 6 inches
Source dataGuardian dimensional catalog; dimensions in inches and weights in pounds
Ordering noteConfirm thread standard where applicable, gasket compound, pressure, temperature, hose OD, medium, and required certification
Guardian 316 Stainless Camlock Drawing and Dimensions
Dimensions in inches; source tolerances retained
316 stainless sizes, SKUs and dimensions
Scroll table horizontally on smaller screens
Size
316 Stainless SKU
Outside dia. D
Inside dia. d
Body length L
Handle length L1
Wrench flats S
Weight (lb) Add to quote
1/2"
KLS61D012
1.30 +/- 0.015
0.47 +/- 0.010
1.69 -0.03
4.33 +/- 0.04
1.00 +/- 0.015
0.34
3/4"
KLS61D034
1.60 +/- 0.015
0.67 +/- 0.010
1.77 -0.03
4.73 +/- 0.04
1.22 +/- 0.015
0.41
1"
KLS61D010
1.81 +/- 0.015
0.98 +/- 0.010
2.11 -0.04
5.24 +/- 0.04
1.46 +/- 0.015
0.51
1-1/4"
KLS61D114
2.23 +/- 0.020
1.26 +/- 0.015
2.50 -0.04
7.13 +/- 0.06
1.81 +/- 0.015
0.88
1-1/2"
KLS61D112
2.52 +/- 0.020
1.52 +/- 0.015
2.56 -0.04
7.42 +/- 0.06
2.05 +/- 0.015
0.96
2"
KLS61D200
2.92 +/- 0.025
1.97 +/- 0.015
2.85 -0.04
7.80 +/- 0.06
2.52 +/- 0.020
1.18
2-1/2"
KLS61D212
3.43 +/- 0.025
2.44 +/- 0.020
3.23 -0.04
8.29 +/- 0.06
3.15 +/- 0.020
1.62
3"
KLS61D300
4.15 +/- 0.030
2.91 +/- 0.030
3.31 -0.05
9.76 +/- 0.08
3.74 +/- 0.020
2.19
4"
KLS61D400
5.28 +/- 0.030
4.02 +/- 0.030
3.46 -0.05
10.87 +/- 0.10
4.72 +/- 0.030
3.04
5"
KLS61D500
6.42 +/- 0.040
4.84 +/- 0.040
3.98 -0.06
11.89 +/- 0.10
5.94 +/- 0.030
5.43
6"
KLS61D600
7.78 +/- 0.060
5.89 +/- 0.060
4.33 -0.06
14.88 +/- 0.10
6.97 +/- 0.035
7.11
Female camlock dust cap

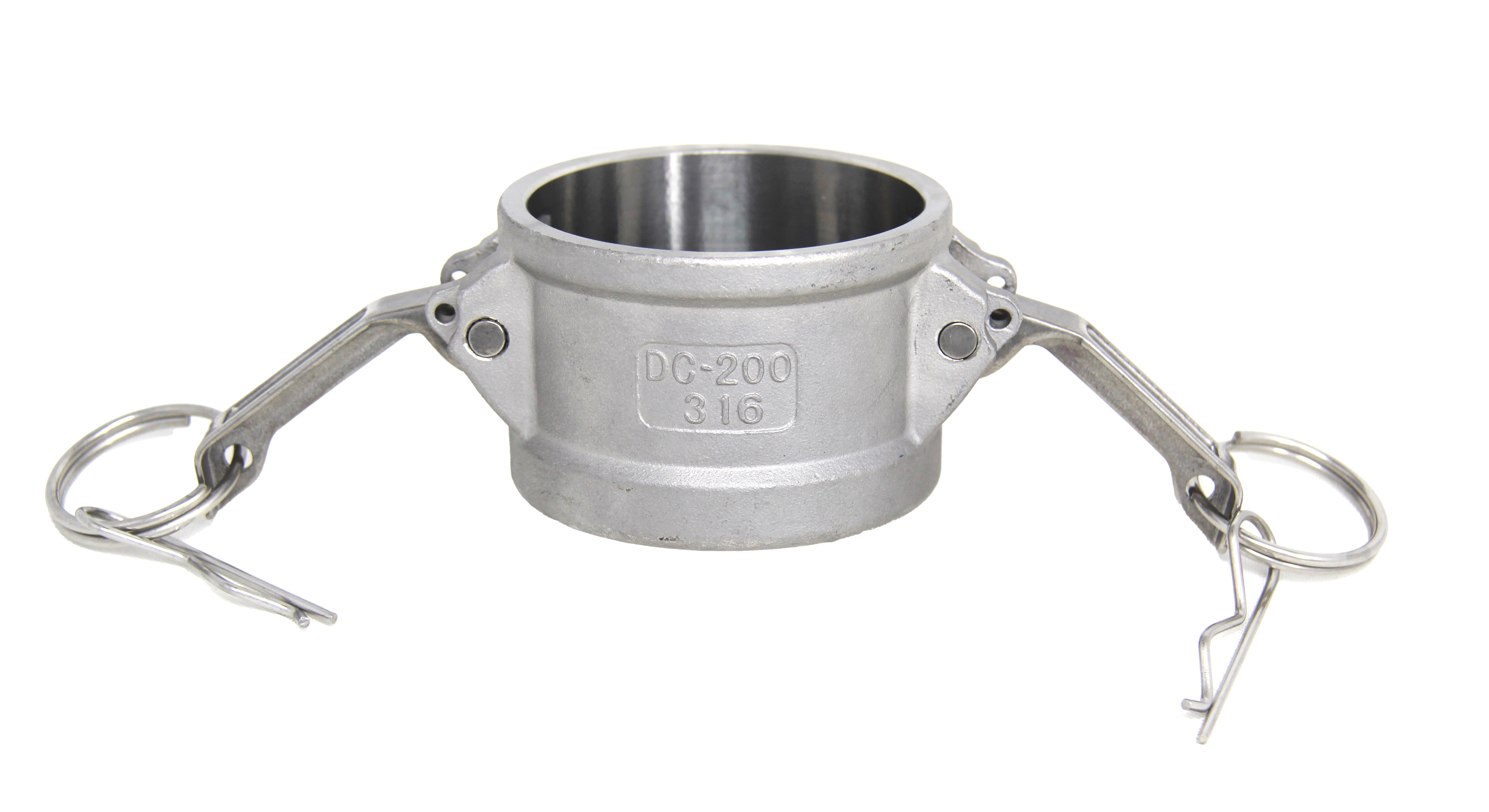

Type DC Camlock Dust Cap
Type DC 316 stainless female cam-and-groove dust cap with locking handles for covering a compatible male adapter.
Back to top
Camlock typeType DC
ConnectionFemale camlock dust cap
Material shown316 stainless steel
Size range1/2 inch through 6 inches
Source dataGuardian dimensional catalog; dimensions in inches and weights in pounds
Ordering noteConfirm thread standard where applicable, gasket compound, pressure, temperature, hose OD, medium, and required certification
Guardian 316 Stainless Camlock Drawing and Dimensions
Dimensions in inches; source tolerances retained
316 stainless sizes, SKUs and dimensions
Scroll table horizontally on smaller screens
Size
316 Stainless SKU
Outside dia. D
Body length L
Handle length L1
Body edge L2
Weight (lb) Add to quote
1/2"
KLS61DC012
1.30 +/- 0.015
1.30 -0.03
4.33 +/- 0.04
2.15 -0.03
0.29
3/4"
KLS61DC034
1.60 +/- 0.015
1.38 -0.03
4.72 +/- 0.04
2.50 -0.03
0.33
1"
KLS61DC010
1.81 +/- 0.015
1.61 -0.04
5.24 +/- 0.04
2.68 -0.04
0.42
1-1/4"
KLS61DC114
2.23 +/- 0.020
1.91 -0.04
7.13 +/- 0.06
3.11 -0.04
0.74
1-1/2"
KLS61DC112
2.52 +/- 0.020
1.93 -0.04
7.42 +/- 0.06
3.46 -0.04
0.77
2"
KLS61DC200
2.92 +/- 0.025
2.20 -0.04
7.80 +/- 0.06
3.82 -0.04
1.06
2-1/2"
KLS61DC212
3.43 +/- 0.025
2.28 -0.04
8.29 +/- 0.06
4.29 -0.04
1.30
3"
KLS61DC300
4.15 +/- 0.030
2.36 -0.05
9.76 +/- 0.08
5.10 -0.05
1.76
4"
KLS61DC400
5.28 +/- 0.030
2.60 -0.05
10.87 +/- 0.10
6.38 -0.05
2.68
5"
KLS61DC500
6.42 +/- 0.040
2.68 -0.06
11.89 +/- 0.10
7.28 -0.06
4.47
6"
KLS61DC600
7.78 +/- 0.060
2.95 -0.06
14.88 +/- 0.10
8.82 -0.06
6.45
Male camlock dust plug

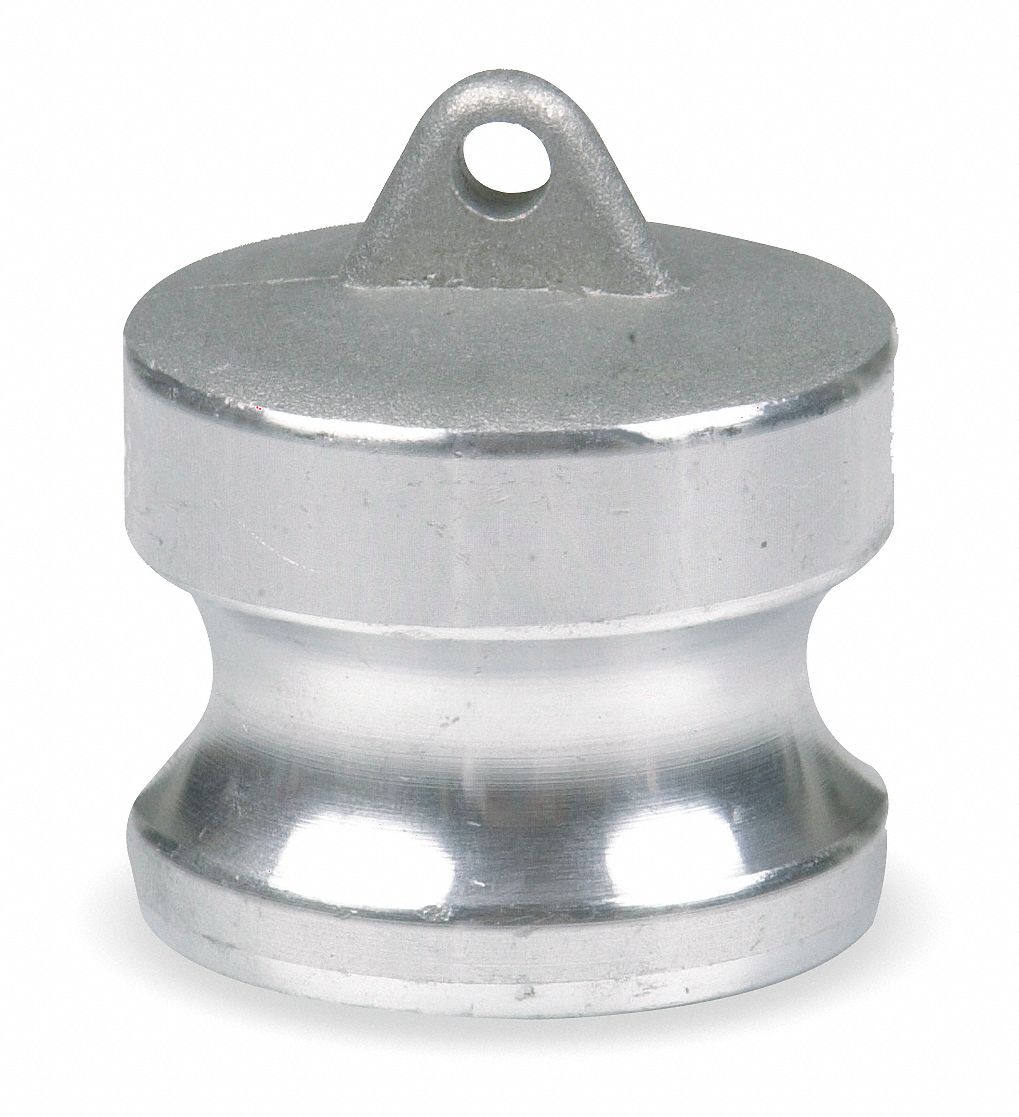

Type DP Camlock Dust Plug
Type DP 316 stainless male cam-and-groove dust plug for covering a compatible female coupler.
Back to top
Camlock typeType DP
ConnectionMale camlock dust plug
Material shown316 stainless steel
Size range1/2 inch through 6 inches
Source dataGuardian dimensional catalog; dimensions in inches and weights in pounds
Ordering noteConfirm thread standard where applicable, gasket compound, pressure, temperature, hose OD, medium, and required certification
Guardian 316 Stainless Camlock Drawing and Dimensions
Dimensions in inches; source tolerances retained
316 stainless sizes, SKUs and dimensions
Scroll table horizontally on smaller screens
Size
316 Stainless SKU
Outside dia. D
Inside dia. d
Body length L
Weight (lb) Add to quote
1/2"
KLS61DP012
0.94 +/- 0.005
0.57 +/- 0.008
1.17 -0.03
0.09
3/4"
KLS61DP034
1.26 +/- 0.005
0.89 +/- 0.008
1.10 -0.03
0.13
1"
KLS61DP010
1.44 +/- 0.005
0.98 +/- 0.008
1.42 -0.04
0.18
1-1/4"
KLS61DP114
1.79 +/- 0.006
1.20 +/- 0.010
1.58 -0.04
0.31
1-1/2"
KLS61DP112
2.10 +/- 0.006
1.46 +/- 0.010
1.62 -0.04
0.38
2"
KLS61DP200
2.48 +/- 0.006
1.89 +/- 0.012
1.86 -0.04
0.58
2-1/2"
KLS61DP212
2.98 +/- 0.006
2.28 +/- 0.012
1.99 -0.04
0.92
3"
KLS61DP300
3.60 +/- 0.008
2.95 +/- 0.012
2.11 -0.05
1.13
4"
KLS61DP400
4.71 +/- 0.010
4.02 +/- 0.016
2.15 -0.05
1.97
5"
KLS61DP500
5.73 +/- 0.015
4.98 +/- 0.020
2.56 -0.06
3.45
6"
KLS61DP600
6.93 +/- 0.015
5.91 +/- 0.020
2.60 -0.06
6.45
Male camlock adapter x hose shank
Type E Camlock Hose Adapter
Type E 316 stainless male cam-and-groove adapter with a stepped hose-shank connection.
Back to top
Camlock typeType E
ConnectionMale camlock adapter x hose shank
Material shown316 stainless steel
Size range1/2 inch through 6 inches
Source dataGuardian dimensional catalog; dimensions in inches and weights in pounds
Ordering noteConfirm thread standard where applicable, gasket compound, pressure, temperature, hose OD, medium, and required certification
Guardian 316 Stainless Camlock Drawing and Dimensions
Dimensions in inches; source tolerances retained
316 stainless sizes, SKUs and dimensions
Scroll table horizontally on smaller screens
Size
316 Stainless SKU
Outside dia. D
Inside dia. d
Body length L
Hose length L1
Hose dia. D1
Weight (lb) Add to quote
1/2"
KLS61E012
0.94 +/- 0.005
0.33 +/- 0.010
2.87 -0.03
1.57 +/- 0.010
0.55 +/- 0.010
0.16
3/4"
KLS61E034
1.26 +/- 0.005
0.57 +/- 0.010
3.39 -0.03
1.97 +/- 0.010
0.81 +/- 0.010
0.26
1"
KLS61E010
1.44 +/- 0.005
0.83 +/- 0.010
3.74 -0.04
2.20 +/- 0.010
1.06 +/- 0.010
0.40
1-1/4"
KLS61E114
1.79 +/- 0.006
1.04 +/- 0.015
4.29 -0.04
2.36 +/- 0.015
1.30 +/- 0.010
0.59
1-1/2"
KLS61E112
2.10 +/- 0.006
1.32 +/- 0.015
4.53 -0.04
2.56 +/- 0.015
1.57 +/- 0.010
0.79
2"
KLS61E200
2.48 +/- 0.006
1.77 +/- 0.015
5.20 -0.04
3.07 +/- 0.015
2.07 +/- 0.012
1.14
2-1/2"
KLS61E212
2.98 +/- 0.006
2.26 +/- 0.020
5.59 -0.04
3.19 +/- 0.020
2.60 +/- 0.012
1.75
3"
KLS61E300
3.60 +/- 0.008
2.76 +/- 0.030
6.14 -0.05
3.82 +/- 0.030
3.11 +/- 0.015
2.35
4"
KLS61E400
4.71 +/- 0.010
3.62 +/- 0.030
6.97 -0.05
4.49 +/- 0.030
4.06 +/- 0.016
4.09
5"
KLS61E500
5.73 +/- 0.015
4.72 +/- 0.040
7.13 -0.06
4.61 +/- 0.040
5.14 +/- 0.020
5.46
6"
KLS61E600
6.93 +/- 0.015
5.59 +/- 0.060
7.80 -0.06
4.92 +/- 0.050
6.14 +/- 0.025
8.10
Male camlock adapter x male threaded end
Type F Camlock Adapter
Type F 316 stainless male cam-and-groove adapter with a male threaded process connection.
Back to top
Camlock typeType F
ConnectionMale camlock adapter x male threaded end
Material shown316 stainless steel
Size range1/2 inch through 6 inches
Source dataGuardian dimensional catalog; dimensions in inches and weights in pounds
Ordering noteConfirm thread standard where applicable, gasket compound, pressure, temperature, hose OD, medium, and required certification
Guardian 316 Stainless Camlock Drawing and Dimensions
Dimensions in inches; source tolerances retained
316 stainless sizes, SKUs and dimensions
Scroll table horizontally on smaller screens
Size
316 Stainless SKU
Outside dia. D
Inside dia. d
Body length L
Machine length L4
Wrench flats S
Weight (lb) Add to quote
1/2"
KLS61F012
0.94 +/- 0.005
0.57 +/- 0.008
1.93 -0.03
0.98 +/- 0.005
0.94 +/- 0.015
0.17
3/4"
KLS61F034
1.26 +/- 0.005
0.89 +/- 0.008
1.97 -0.03
0.98 +/- 0.005
1.26 +/- 0.015
0.21
1"
KLS61F010
1.44 +/- 0.005
0.98 +/- 0.008
2.36 -0.04
1.25 +/- 0.005
1.46 +/- 0.015
0.29
1-1/4"
KLS61F114
1.79 +/- 0.006
1.20 +/- 0.010
2.76 -0.04
1.51 +/- 0.006
1.81 +/- 0.015
0.48
1-1/2"
KLS61F112
2.10 +/- 0.006
1.46 +/- 0.010
2.83 -0.04
1.52 +/- 0.006
2.13 +/- 0.015
0.65
2"
KLS61F200
2.48 +/- 0.006
1.89 +/- 0.012
3.21 -0.04
1.87 +/- 0.006
2.52 +/- 0.020
0.87
2-1/2"
KLS61F212
2.98 +/- 0.006
2.28 +/- 0.012
3.50 -0.04
1.94 +/- 0.006
3.03 +/- 0.020
1.63
3"
KLS61F300
3.60 +/- 0.008
2.95 +/- 0.012
3.65 -0.05
2.01 +/- 0.008
3.70 +/- 0.020
1.78
4"
KLS61F400
4.71 +/- 0.010
4.02 +/- 0.016
3.87 -0.05
1.94 +/- 0.008
4.72 +/- 0.030
2.94
5"
KLS61F500
5.73 +/- 0.015
4.98 +/- 0.020
4.72 -0.06
2.19 +/- 0.011
5.87 +/- 0.030
4.73
6"
KLS61F600
6.93 +/- 0.015
5.91 +/- 0.020
4.92 -0.06
2.32 +/- 0.011
7.01 +/- 0.035
6.05
Specification sheet
